| Part Number | L5963DN-EHT | L5963DN-EHX | L5963D-EHT |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete |
| Topology | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) | Step-Down (Buck) Synchronous (2), Linear (LDO) (1) |
| Number of Outputs | 3 | 3 | 3 |
| Frequency - Switching | 250kHz ~ 2MHz | 250kHz ~ 2MHz | 250kHz ~ 2MHz |
| Voltage/Current - Output 1 | Programmable, 2.5A | Programmable, 2.5A | Programmable, 2.5A |
| Voltage/Current - Output 2 | Programmable, 3A | Programmable, 3A | Programmable, 3A |
| Voltage/Current - Output 3 | Programmable, 250mA | Programmable, 250mA | Programmable, 250mA |
| w/LED Driver | No | No | No |
| w/Supervisor | Yes | Yes | Yes |
| w/Sequencer | Yes | Yes | Yes |
| Voltage - Supply | 3.5V ~ 26V | 3.5V ~ 26V | 3.5V ~ 26V |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

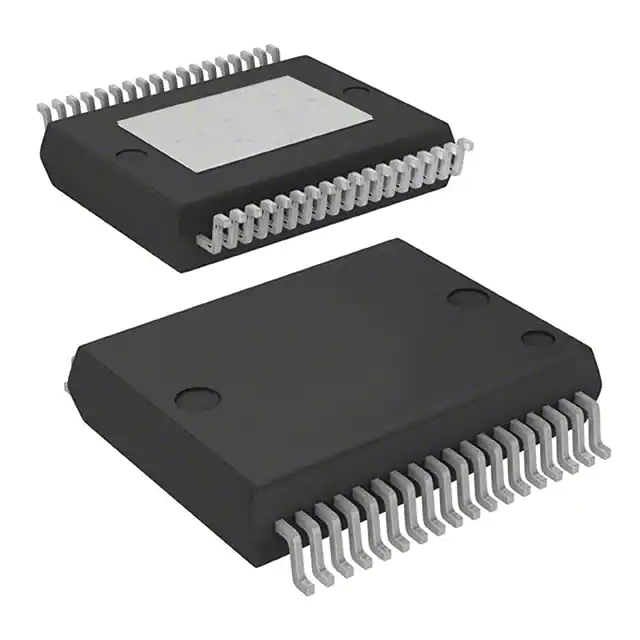

| Package / Case | 36-PowerFSOP (0.295", 7.50mm Width) | 36-PowerFSOP (0.295", 7.50mm Width) | 36-PowerFSOP (0.295", 7.50mm Width) |
| Supplier Device Package | PowerSSO-36 EPU | PowerSSO-36 EPU | PowerSSO-36 EPU |
