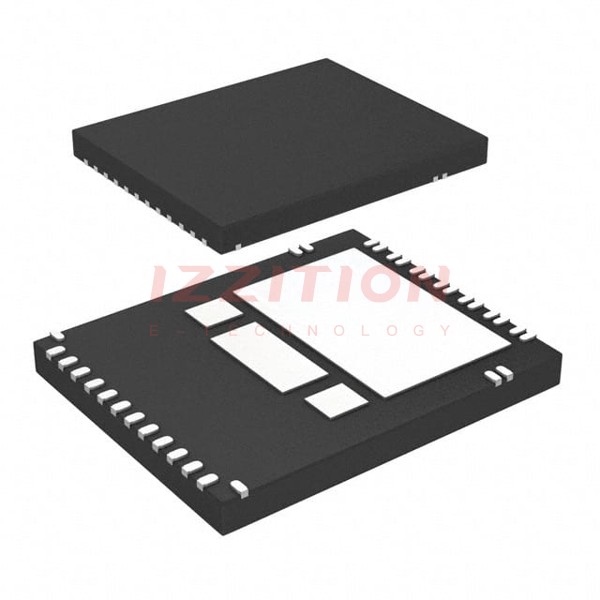

| Part Number | ISO8200BQTR | ISO8200BTR | ISO8200AQTR |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| Switch Type | Relay, Solenoid Driver | Relay, Solenoid Driver | Relay, Solenoid Driver |
| Number of Outputs | 8 | 8 | 8 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side |
| Output Type | - | - | - |
| Interface | Parallel | Parallel | SPI |
| Voltage - Load | 10.5V ~ 36V | 10.5V ~ 36V | 10.5V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | - | - | 2.75V ~ 5.5V |
| Current - Output (Max) | 700mA | 700mA | 700mA |
| Rds On (Typ) | 120mOhm | 120mOhm | 120mOhm |
| Input Type | - | - | - |
| Features | Auto Restart, Status Flag | Auto Restart, Galvanic Isolation, Status Flag | Auto Restart, Galvanic Isolation, Status Flag |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | Current Limiting (Fixed), Over Temperature | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 32-TFQFPN (11x9) | PowerSO-36 | 32-TFQFPN (11x9) |
| Package / Case | 32-TQFN Exposed Pad | 36-BSSOP (0.433", 11.00mm Width) Exposed Pad | 32-TQFN Exposed Pad |
