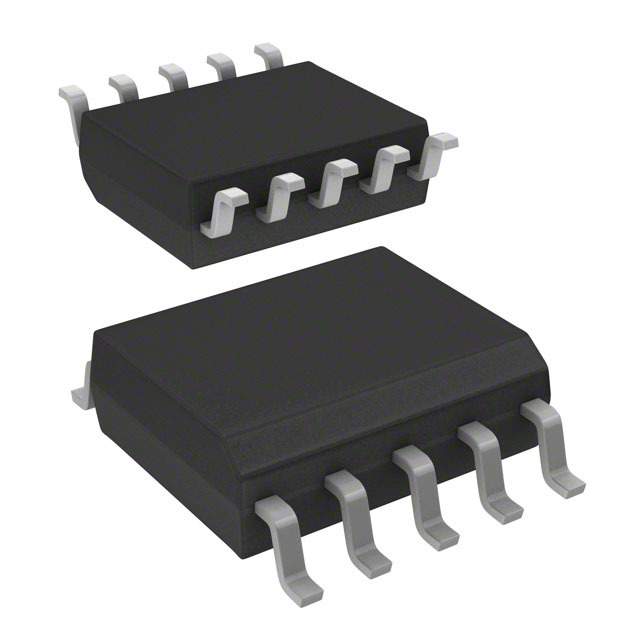

| Part Number | HVLED001 | HVLED001A | HVLED002 | HVLED007 |
|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Active | Active |
| Type | AC DC Offline Switcher | AC DC Offline Switcher | DC DC Controller | AC DC Offline Switcher |
| Topology | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost) | - | Flyback, Step-Up (Boost) |
| Internal Switch(s) | No | No | No | Yes |
| Number of Outputs | 1 | 1 | - | 1 |
| Voltage - Supply (Min) | 9.7V | 8.8V | 7V | 10.5V |
| Voltage - Supply (Max) | 18V | 16.5V | 25V | 22.5V |
| Voltage - Output | - | - | 5V | - |
| Current - Output / Channel | - | - | - | - |
| Frequency | - | - | 250kHz | - |
| Dimming | PWM | PWM | - | - |
| Applications | - | - | - | Commercial & Industrial Lighting |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-SOP (0.154", 3.90mm Width) | 10-SOP (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 10-SSOP | 10-SSO | 8-SOIC | 8-SO |
