E-TDA7566
  • Share:

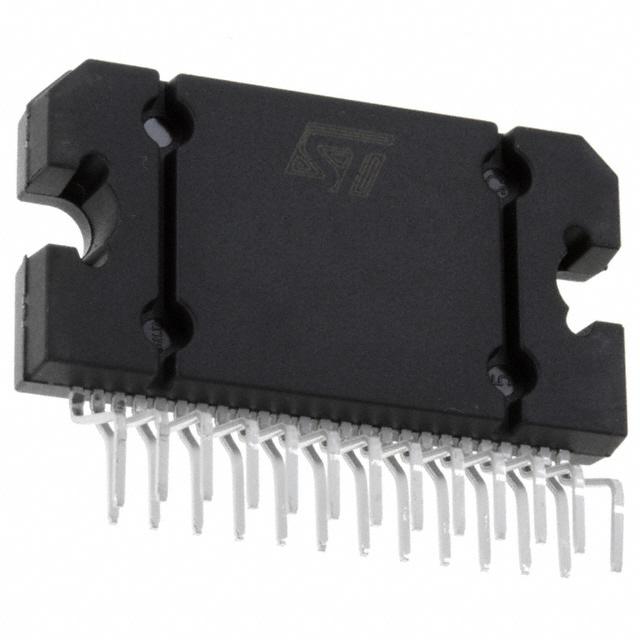

STMicroelectronics E-TDA7566

Manufacturer No:
E-TDA7566
Manufacturer:
STMicroelectronics
Package:
Tube
Datasheet:
E-TDA7566 Datasheet
ECAD Model:
-
Description:
IC AMP AB QUAD 60W 25FLEXIWATT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Class AB
Output Type:4-Channel (Quad)
Max Output Power x Channels @ Load:60W x 4 @ 2Ohm
Voltage - Supply:8V ~ 18V
Features:I²C, Mute, Short-Circuit and Thermal Protection, Standby
Mounting Type:Surface Mount
Operating Temperature:-55°C ~ 150°C (TJ)
Supplier Device Package:25-Flexiwatt (Vertical)
Package / Case:25-Flexiwatt (Formed Leads)
0 Remaining View Similar

In Stock

$6.78
81

Please send RFQ , we will respond immediately.

Similar Products

Part Number E-TDA7566 E-TDA7560   E-TDA7562
Manufacturer STMicroelectronics STMicroelectronics STMicroelectronics
Product Status Active Active Obsolete
Type Class AB Class AB Class AB
Output Type 4-Channel (Quad) 4-Channel (Quad) 4-Channel (Quad)
Max Output Power x Channels @ Load 60W x 4 @ 2Ohm 80W x 4 @ 2Ohm 60W x 4 @ 2Ohm
Voltage - Supply 8V ~ 18V 8V ~ 18V 8V ~ 18V
Features I²C, Mute, Short-Circuit and Thermal Protection, Standby Mute, Short-Circuit and Thermal Protection, Standby I²C, Mute, Short-Circuit and Thermal Protection, Standby
Mounting Type Surface Mount Through Hole Through Hole
Operating Temperature -55°C ~ 150°C (TJ) - -55°C ~ 150°C (TJ)
Supplier Device Package 25-Flexiwatt (Vertical) 25-Flexiwatt (Vertical) 27-Flexiwatt (Vertical)
Package / Case 25-Flexiwatt (Formed Leads) 25-Flexiwatt (Formed Leads) 27-Flexiwatt (Formed Leads)
