DIP1524-01D3
  • Share:

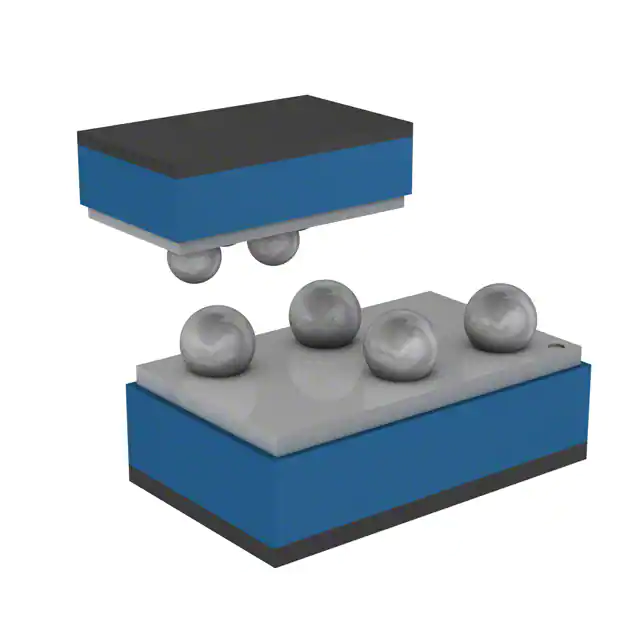

STMicroelectronics DIP1524-01D3

Manufacturer No:
DIP1524-01D3
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Datasheet:
DIP1524-01D3 Datasheet
ECAD Model:
-
Description:
RF DIPLX 1589.655MHZ/2.55GHZ BGA
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:Diplexer
Frequency Bands (Low / High):1573.42MHz ~ 1605.89MHz / 2.4GHz ~ 2.7GHz
Low Band Attenuation (min / max dB):20.00dB / -
High Band Attenuation (min / max dB):18.00dB / -
Return Loss (Low Band / High Band):10.0dB / 20.0dB
Mounting Type:Surface Mount
Package / Case:4-UFBGA, FCBGA
0 Remaining View Similar

In Stock

$0.45
2,116

Please send RFQ , we will respond immediately.
