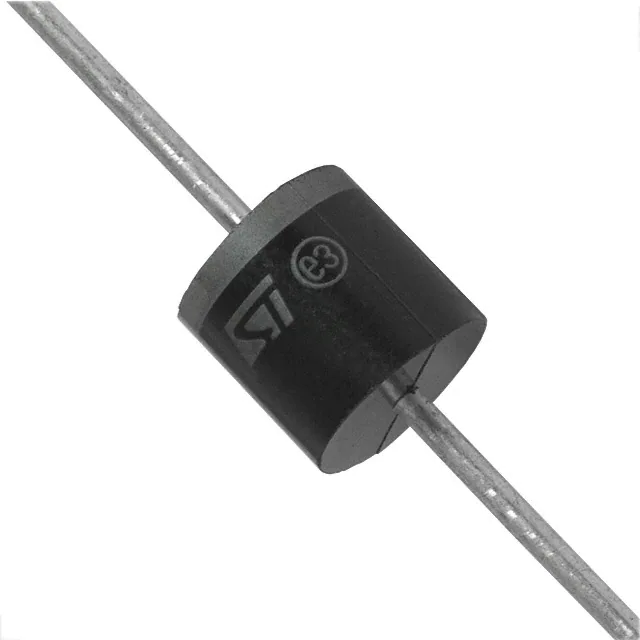

| Part Number | BZW50-39 | BZW50-39B | BZW50-33 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | - | 1 |
| Bidirectional Channels | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 39V | 39V | 33V |
| Voltage - Breakdown (Min) | 43.3V | 43.3V | 36.6V |
| Voltage - Clamping (Max) @ Ipp | 90V | 90V | 76V |
| Current - Peak Pulse (10/1000µs) | 667A (8/20µs) | 667A (8/20µs) | 789A (8/20µs) |
| Power - Peak Pulse | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 4800pF @ 1MHz | 2400pF @ 1MHz | 5750pF @ 1MHz |
| Operating Temperature | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | R-6, Axial | R-6, Axial | R-6, Axial |
| Supplier Device Package | R-6 | R-6 | R-6 |
