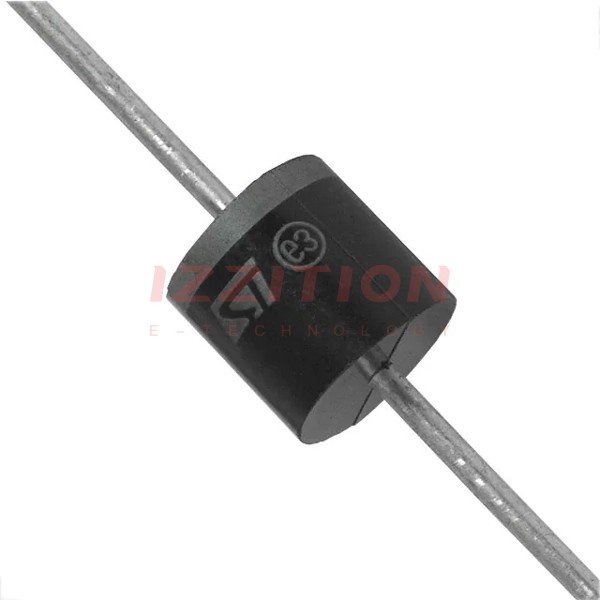

| Part Number | BZW50-150 | BZW50-180 | BZW50-15B | BZW50-150B | BZW50-10 | BZW50-100 | BZW50-15 |
|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Active | Not For New Designs | Obsolete | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - | - | 1 | 1 | 1 |
| Bidirectional Channels | - | - | 1 | 1 | - | - | - |
| Voltage - Reverse Standoff (Typ) | 150V | 180V | 15V | 150V | 10V | 100V | 15V |
| Voltage - Breakdown (Min) | 166V | 200V | 16.6V | 166V | 11.1V | 111V | 16.6V |
| Voltage - Clamping (Max) @ Ipp | 343V | 410V | 35V | 343V | 23.4V | 228V | 35V |
| Current - Peak Pulse (10/1000µs) | 175A (8/20µs) | 146A (8/20µs) | 1714A (1.714kA) (8/20µs) | 175A (8/20µs) | 2564A (2.564kA) (8/20µs) | 263A (8/20µs) | 1714A (1.714kA) (8/20µs) |
| Power - Peak Pulse | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) | 5000W (5kW) |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 1700pF @ 1MHz | 1500pF @ 1MHz | 6750pF @ 1MHz | 850pF @ 1MHz | 24000pF @ 1MHz | 2300pF @ 1MHz | 13500pF @ 1MHz |
| Operating Temperature | - | - | - | - | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | R-6, Axial | R-6, Axial | R-6, Axial | R-6, Axial | R-6, Axial | R-6, Axial | R-6, Axial |
| Supplier Device Package | R-6 | R-6 | R-6 | R-6 | R-6 | R-6 | R-6 |
