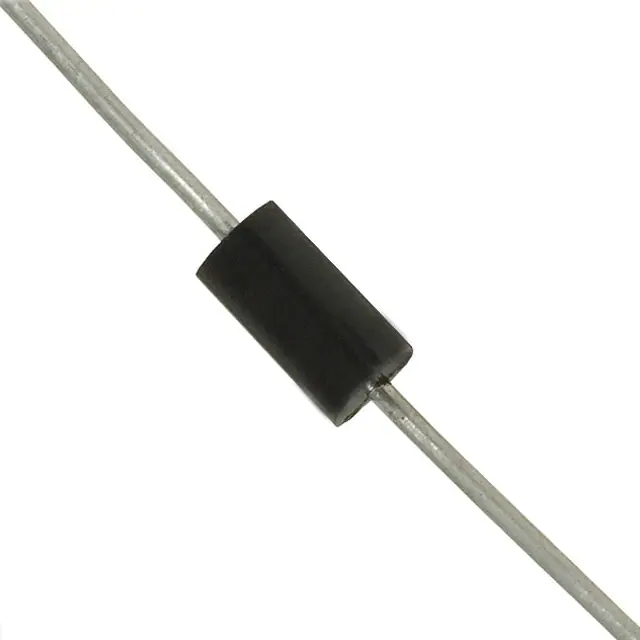

| Part Number | BZW06-23B | BZW06-53B | BZW06-273B | BZW06-33B | BZW06-26B | BZW06-28B | BZW06-13B | BZW06-20B | BZW06-213B | BZW06-23 | BZW06-239 | BZW06-239B |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | Diotec Semiconductor | Diotec Semiconductor | STMicroelectronics | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor | Diotec Semiconductor |
| Product Status | Obsolete | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - | - | - | - | - | 1 | 1 | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - | - | 1 |
| Voltage - Reverse Standoff (Typ) | 23.1V | 53V | 273V | 33.3V | 25.6V | 28.2V | 12.8V | 20.5V | 213V | 23.1V | 239V | 239V |
| Voltage - Breakdown (Min) | 25.7V | 58.9V | 304V | 37.1V | 28.5V | 31.4V | 14.3V | 22.8V | 237V | 25.7V | 266V | 266V |
| Voltage - Clamping (Max) @ Ipp | 48.3V | 85V | 438V | 69.7V | 53.5V | 59V | 27.2V | 33.2V | 344V | 37.5V | 384V | 384V |
| Current - Peak Pulse (10/1000µs) | 83A (8/20µs) | 7.1A | 1.6A | 57A (8/20µs) | 75A (8/20µs) | 68A (8/20µs) | 147A (8/20µs) | 18A | 1.8A | 16A | 1.7A | 1.7A |
| Power - Peak Pulse | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W | 600W |
| Power Line Protection | No | No | No | No | No | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 575pF @ 1MHz | - | - | 450pF @ 1MHz | - | - | - | - | - | - | - | - |
| Operating Temperature | - | -50°C ~ 175°C (TJ) | -50°C ~ 175°C (TJ) | - | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -50°C ~ 175°C (TJ) | -50°C ~ 175°C (TJ) | -50°C ~ 175°C (TJ) | -50°C ~ 175°C (TJ) | -50°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial | DO-204AC, DO-15, Axial |
| Supplier Device Package | DO-15 (DO-204AC) | DO15/DO204AC | DO15/DO204AC | DO-15 (DO-204AC) | DO-204AC (DO-15) | DO-204AC (DO-15) | DO-204AC (DO-15) | DO15/DO204AC | DO15/DO204AC | DO15/DO204AC | DO15/DO204AC | DO15/DO204AC |
