STMicroelectronics-BYW29G-200-TR - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Standard
Voltage - DC Reverse (Vr) (Max):	200 V
Current - Average Rectified (Io):	8A
Voltage - Forward (Vf) (Max) @ If:	1.15 V @ 10 A
Speed:	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr):	35 ns
Current - Reverse Leakage @ Vr:	10 µA @ 200 V
Capacitance @ Vr, F:	-
Mounting Type:	Surface Mount
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package:	D2PAK
Operating Temperature - Junction:	150°C (Max)

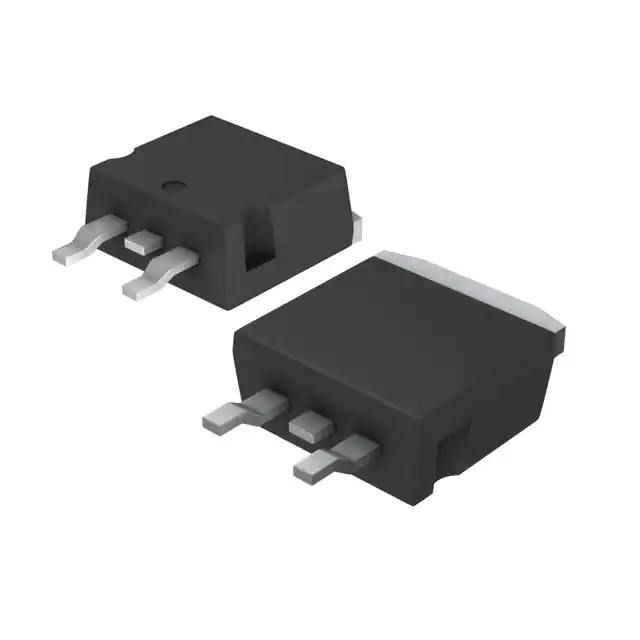

STMicroelectronics BYW29G-200-TR
