| Part Number | BYV54V-200 | BYV541V-200 |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete |
| Diode Configuration | 2 Independent | 2 Independent |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V | 200 V |
| Current - Average Rectified (Io) (per Diode) | 50A | 50A |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 50 A | 850 mV @ 50 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 60 ns | 60 ns |
| Current - Reverse Leakage @ Vr | 50 µA @ 200 V | 50 µA @ 200 V |
| Operating Temperature - Junction | - | 150°C (Max) |
| Mounting Type | Chassis Mount | Chassis Mount |

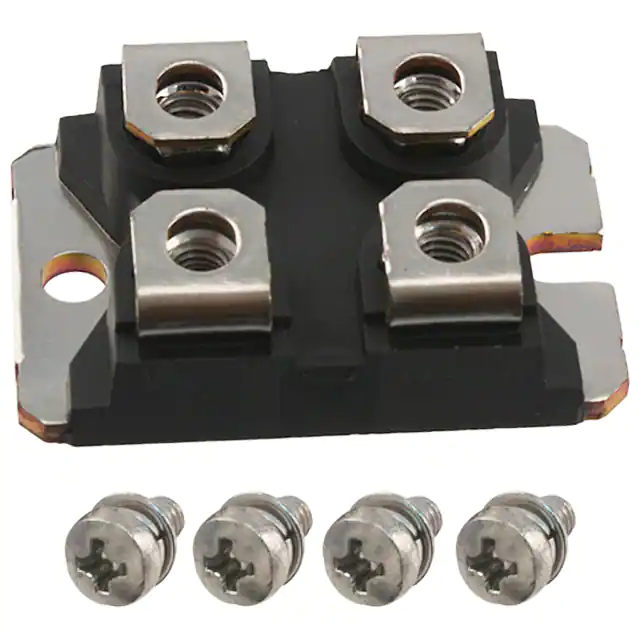

| Package / Case | ISOTOP | ISOTOP |
| Supplier Device Package | ISOTOP® | ISOTOP® |
