Please send RFQ , we will respond immediately.

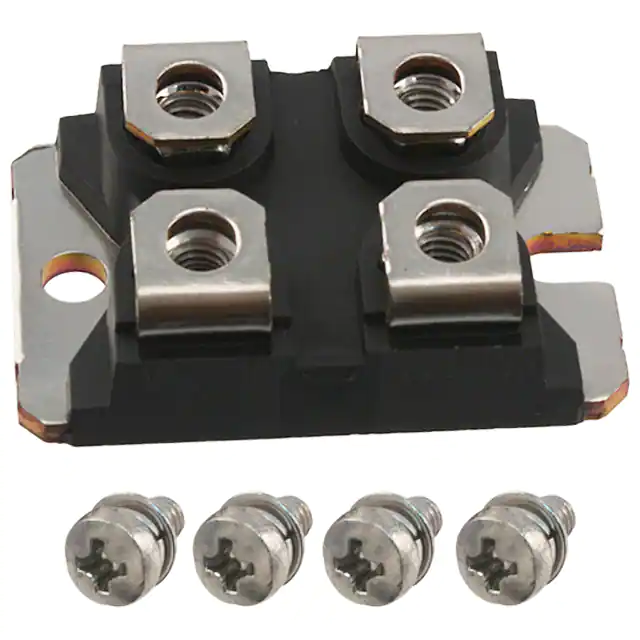

| Part Number | BYT231PIV-400 | BYT261PIV-400 | BYT230PIV-400 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Configuration | 2 Independent | 2 Independent | 2 Independent |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 400 V | 400 V | 400 V |
| Current - Average Rectified (Io) (per Diode) | 30A | 60A | 30A |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 30 A | 1.5 V @ 60 A | 1.5 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 100 ns | 100 ns | 100 ns |
| Current - Reverse Leakage @ Vr | 35 µA @ 400 V | 60 µA @ 400 V | 35 µA @ 400 V |
| Operating Temperature - Junction | - | 150°C (Max) | 150°C (Max) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | ISOTOP | ISOTOP | ISOTOP |
| Supplier Device Package | ISOTOP® | ISOTOP® | ISOTOP® |
