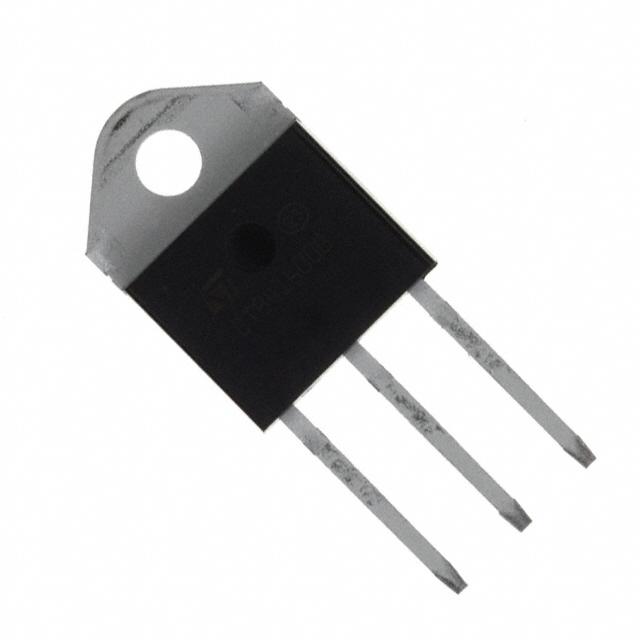

| Part Number | BTW68-200RG | BTW69-200RG | BTW68-800RG | BTW68-600RG | BTW68-1200RG |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Active | Active | Obsolete | Active |
| Voltage - Off State | 200 V | 200 V | 800 V | 600 V | 1.2 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 50 mA | 80 mA | 50 mA | 50 mA | 50 mA |
| Voltage - On State (Vtm) (Max) | 2.1 V | 1.9 V | 2.1 V | 2.1 V | 2.1 V |
| Current - On State (It (AV)) (Max) | 19 A | 32 A | 19 A | 19 A | 19 A |
| Current - On State (It (RMS)) (Max) | 30 A | 50 A | 30 A | 30 A | 30 A |
| Current - Hold (Ih) (Max) | 75 mA | 150 mA | 75 mA | 75 mA | 75 mA |
| Current - Off State (Max) | 20 µA | 10 µA | 20 µA | 20 µA | 20 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A, 420A | 580A, 610A | 400A, 420A | 400A, 420A | 400A, 420A |
| SCR Type | Standard Recovery | Standard Recovery | Standard Recovery | Standard Recovery | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TOP-3 | TOP-3 | TOP-3 | TOP-3 | TOP-3 |
| Supplier Device Package | TOP3 | TOP3 | TOP3 | TOP3 | TOP3 |
