Please send RFQ , we will respond immediately.

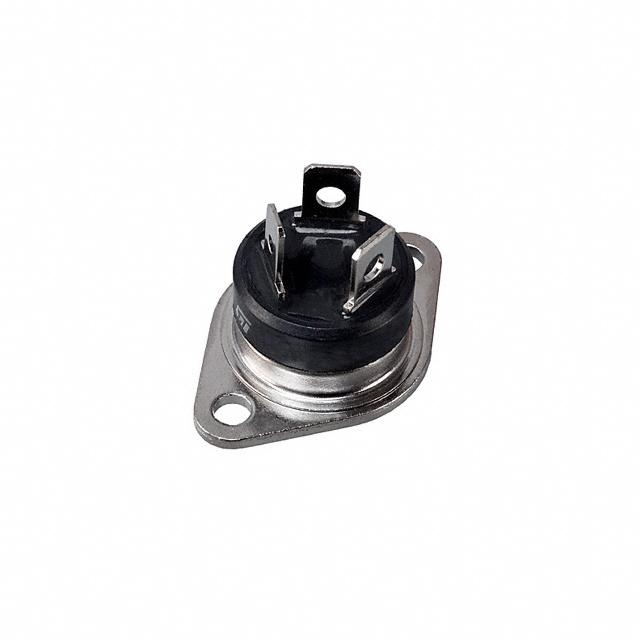

| Part Number | BTA25-600B | BTA25-800B | BTA25-600BW | BTA25-700B | BTA25-400B |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Active | Obsolete | Obsolete |
| Triac Type | Standard | Standard | Alternistor - Snubberless | Standard | Standard |
| Voltage - Off State | 600 V | 800 V | 600 V | 700 V | 400 V |
| Current - On State (It (RMS)) (Max) | 25 A | 25 A | 25 A | 25 A | 25 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 250A, 260A | 250A, 260A | 250A, 260A | 250A, 260A | 250A, 260A |
| Current - Gate Trigger (Igt) (Max) | 50 mA | 50 mA | 50 mA | 50 mA | 50 mA |
| Current - Hold (Ih) (Max) | 80 mA | 80 mA | 75 mA | 80 mA | 80 mA |
| Configuration | Single | Single | Single | Single | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | RD91-3 (Insulated) | RD91-3 (Insulated) | RD91-3 (Insulated) | RD91-3 (Insulated) | RD91-3 (Insulated) |
| Supplier Device Package | RD91 | RD91 | RD91 | RD91 | RD91 |
