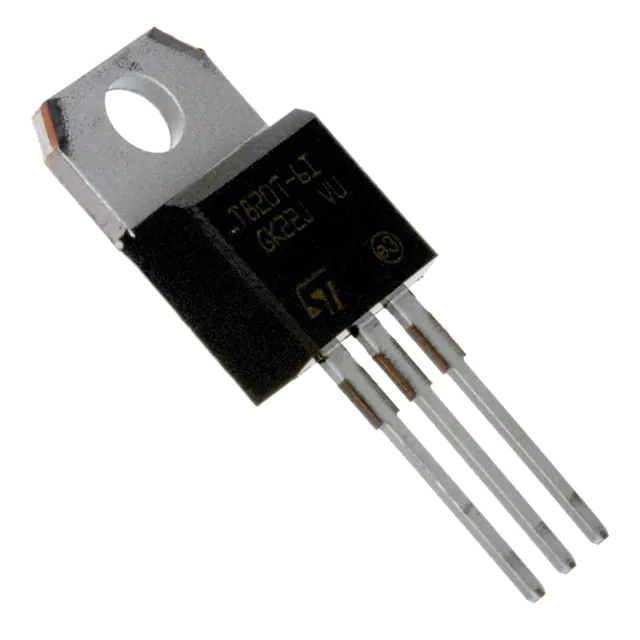

| Part Number | BTA12-800CWRG | BTA16-800CWRG | BTA12-800SWRG | BTA10-800CWRG | BTA12-600CWRG | BTA12-700CWRG | BTA12-800BWRG | BTA12-800CW3G |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | onsemi |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Triac Type | Alternistor - Snubberless | Alternistor - Snubberless | Logic - Sensitive Gate | Alternistor - Snubberless | Alternistor - Snubberless | Alternistor - Snubberless | Alternistor - Snubberless | Standard |
| Voltage - Off State | 800 V | 800 V | 800 V | 800 V | 600 V | 700 V | 800 V | 800 V |
| Current - On State (It (RMS)) (Max) | 12 A | 16 A | 12 A | 10 A | 12 A | 12 A | 12 A | 12 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.3 V | 1.1 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 120A, 126A | 160A, 168A | 120A, 126A | 100A, 105A | 120A, 126A | 120A, 126A | 120A, 126A | 105A @ 60Hz |
| Current - Gate Trigger (Igt) (Max) | 35 mA | 35 mA | 10 mA | 35 mA | 35 mA | 35 mA | 50 mA | 35 mA |
| Current - Hold (Ih) (Max) | 35 mA | 35 mA | 15 mA | 35 mA | 35 mA | 35 mA | 50 mA | 45 mA |
| Configuration | Single | Single | Single | Single | Single | Single | Single | Single |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | - | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
| Supplier Device Package | TO-220AB Insulated | TO-220 | TO-220AB Insulated | TO-220 | TO-220 | TO-220 | TO-220AB Insulated | TO-220AB |
