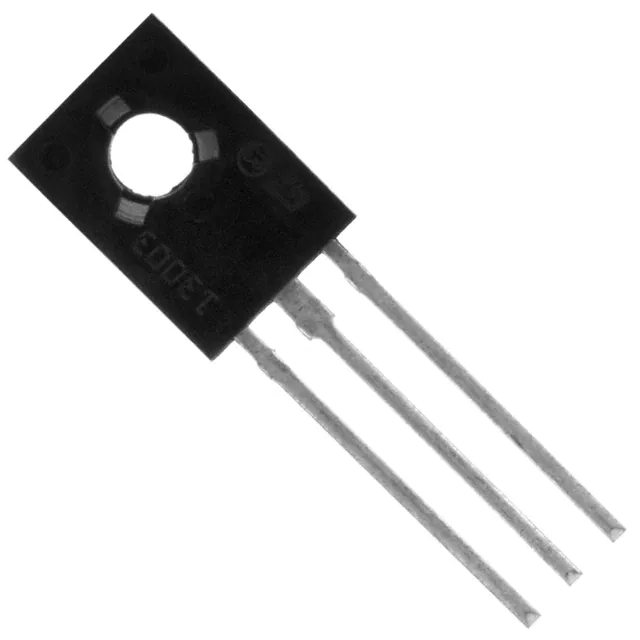

| Part Number | BD135-16 | BD136-16 | BD139-16 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Not For New Designs | Active | Active |
| Transistor Type | NPN | PNP | NPN |
| Current - Collector (Ic) (Max) | 1.5 A | 1.5 A | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 45 V | 45 V | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 150mA, 2V | 40 @ 150mA, 2V | 40 @ 150mA, 2V |
| Power - Max | 1.25 W | 1.25 W | 1.25 W |
| Frequency - Transition | - | - | - |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-225AA, TO-126-3 | TO-225AA, TO-126-3 | TO-225AA, TO-126-3 |
| Supplier Device Package | SOT-32 | SOT-32 | SOT-32-3 |
