STMicroelectronics-BC141-10 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	BC141-10	BC141-16
Manufacturer	STMicroelectronics	STMicroelectronics
Product Status	Obsolete	Obsolete
Transistor Type	NPN	NPN
Current - Collector (Ic) (Max)	1 A	1 A
Voltage - Collector Emitter Breakdown (Max)	60 V	60 V
Vce Saturation (Max) @ Ib, Ic	1V @ 100mA, 1A	1V @ 100mA, 1A
Current - Collector Cutoff (Max)	100nA	100nA
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 100mA, 1V	100 @ 100mA, 1V
Power - Max	650 mW	650 mW
Frequency - Transition	50MHz	50MHz
Operating Temperature	-	175°C (TJ)
Mounting Type	Through Hole	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-39	TO-39

Transistor Type:	NPN
Current - Collector (Ic) (Max):	1 A
Voltage - Collector Emitter Breakdown (Max):	60 V
Vce Saturation (Max) @ Ib, Ic:	1V @ 100mA, 1A
Current - Collector Cutoff (Max):	100nA
DC Current Gain (hFE) (Min) @ Ic, Vce:	100 @ 100mA, 1V
Power - Max:	650 mW
Frequency - Transition:	50MHz
Operating Temperature:	-
Mounting Type:	Through Hole
Package / Case:	TO-205AD, TO-39-3 Metal Can
Supplier Device Package:	TO-39

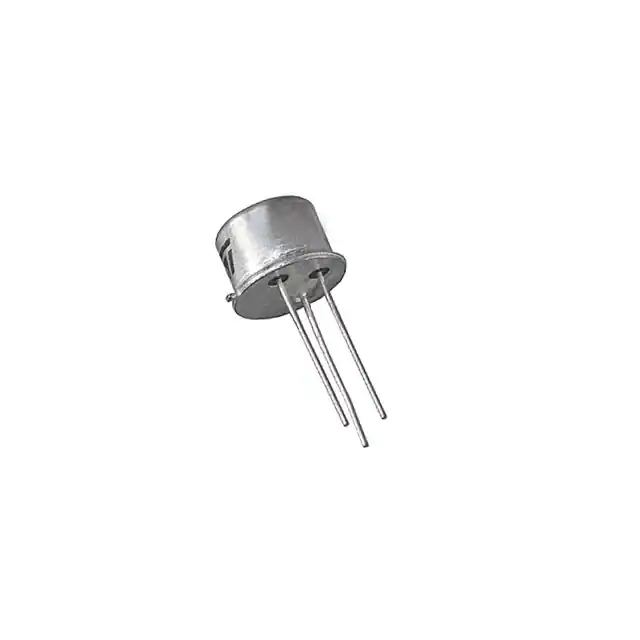

STMicroelectronics BC141-10
