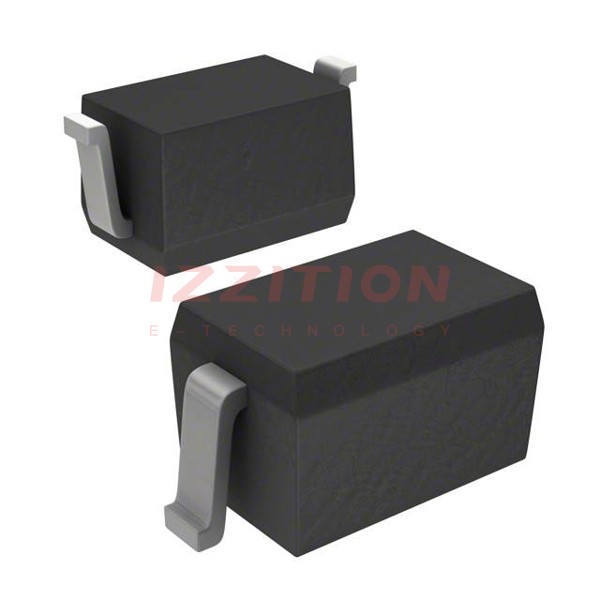

| Part Number | BAT54JFILM | BAT54KFILM | BAT54WFILM | BAT54ZFILM | BAT54FILM |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete | Obsolete | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V | 40 V | 40 V | 40 V |
| Current - Average Rectified (Io) | 300mA (DC) | 300mA (DC) | 300mA (DC) | 300mA (DC) | 300mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 100 mA | 900 mV @ 100 mA | 900 mV @ 100 mA | 900 mV @ 100 mA | 900 mV @ 100 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 5 ns | 5 ns | 5 ns | 5 ns | 5 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 30 V | 1 µA @ 30 V | 1 µA @ 30 V | 1 µA @ 30 V | 1 µA @ 30 V |
| Capacitance @ Vr, F | 10pF @ 1V, 1MHz | 10pF @ 1V, 1MHz | 10pF @ 1V, 1MHz | 10pF @ 1V, 1MHz | 10pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-76, SOD-323 | SC-79, SOD-523 | SC-70, SOT-323 | SOD-123 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOD-323 | SOD-523 | SOT-323 | SOD-123 | SOT-23-3 |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C | -40°C ~ 150°C |
