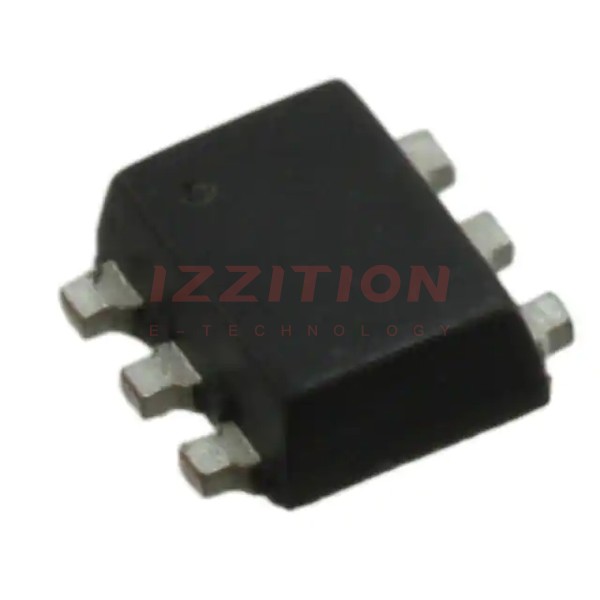

| Part Number | BAT54-09P6FILM | BAT54-07P6FILM |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete |
| Diode Configuration | 2 Independent | 2 Independent |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 40 V | 40 V |
| Current - Average Rectified (Io) (per Diode) | 300mA (DC) | 300mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 100 mA | 900 mV @ 100 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 5 ns | 5 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 30 V | 1 µA @ 30 V |
| Operating Temperature - Junction | -40°C ~ 150°C | -40°C ~ 150°C |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SOT-563, SOT-666 | SOT-563, SOT-666 |
| Supplier Device Package | SOT-666 | SOT-666 |
