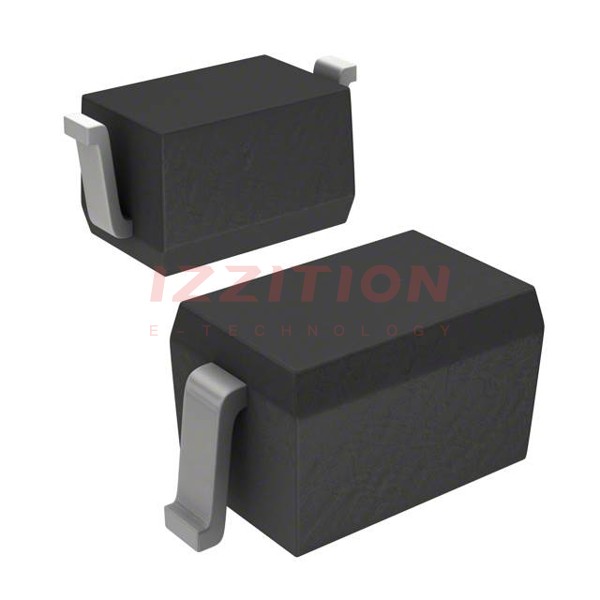

| Part Number | BAT20JFILM | BAT30JFILM |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 23 V | 30 V |
| Current - Average Rectified (Io) | 1A | 300mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 620 mV @ 1 A | 530 mV @ 300 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - |
| Current - Reverse Leakage @ Vr | 12 µA @ 15 V | 5 µA @ 30 V |
| Capacitance @ Vr, F | 30pF @ 5V, 1MHz | 22pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SC-76, SOD-323 | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 | SOD-323 |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) |
