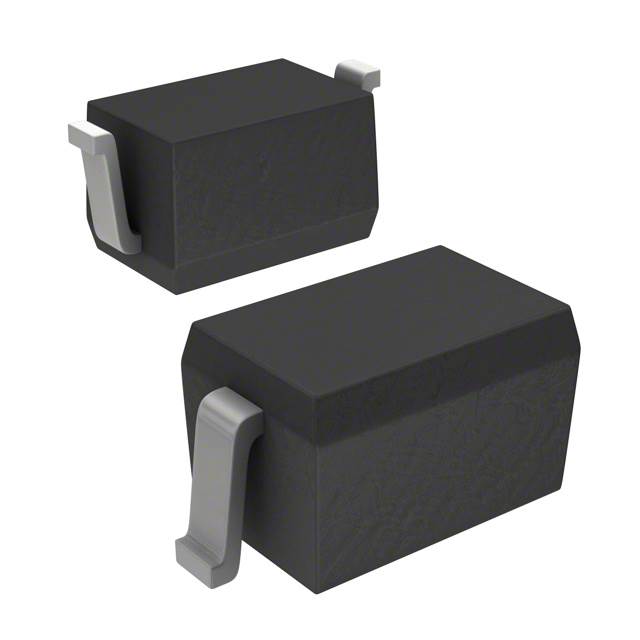

| Part Number | BAS70JFILM | BAS70KFILM | BAS70WFILM | BAS70ZFILM | BAS70FILM |
|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 70 V | 70 V | 70 V | 70 V | 70 V |
| Current - Average Rectified (Io) | 70mA (DC) | 70mA (DC) | 70mA (DC) | 70mA (DC) | 70mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 15 mA | 1 V @ 15 mA | 1 V @ 15 mA | 1 V @ 15 mA | 1 V @ 15 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 10 µA @ 70 V | 10 µA @ 70 V | 10 µA @ 70 V | 10 µA @ 70 V | 10 µA @ 70 V |
| Capacitance @ Vr, F | 2pF @ 0V, 1MHz | 2pF @ 0V, 1MHz | 2pF @ 0V, 1MHz | 2pF @ 0V, 1MHz | 2pF @ 0V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-76, SOD-323 | SC-79, SOD-523 | SC-70, SOT-323 | SOD-123 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOD-323 | SOD-523 | SOT-323 | SOD-123 | SOT-23-3 |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) |
