| Part Number | AS21P2TLRQ | AS11P2TLRQ |
|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics |
| Product Status | Active | Obsolete |
| Switch Circuit | SPDT | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 |
| Number of Circuits | 2 | 1 |
| On-State Resistance (Max) | 500mOhm | 1.2Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm | 50mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - | - |
| Switch Time (Ton, Toff) (Max) | 65ns, 40ns | 28ns, 21ns |
| -3db Bandwidth | 55MHz | 150MHz |
| Charge Injection | 49pC | 33pC |
| Channel Capacitance (CS(off), CD(off)) | 5pF | 25pF |
| Current - Leakage (IS(off)) (Max) | 20nA | 20nA |
| Crosstalk | -72dB @ 100kHz | -80dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

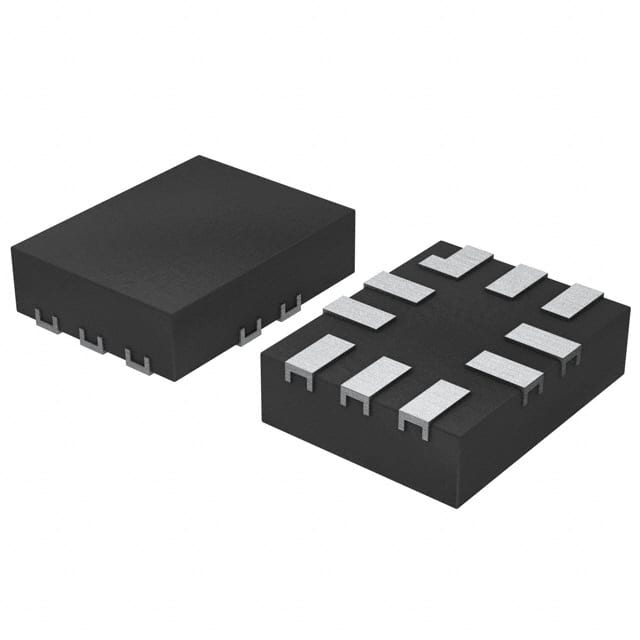

| Package / Case | 10-UFQFN | 6-UFDFN |
| Supplier Device Package | 10-QFN (1.8x1.4) | 6-DFN (1.2x1.0) |
