STMicroelectronics-A2P75S12M3 - Transistors - IGBTs - Modules Product Specifications and Latest Quotes

IGBT Type:	Trench Field Stop
Configuration:	Three Phase Inverter
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	75 A
Power - Max:	454.5 W
Vce(on) (Max) @ Vge, Ic:	2.3V @ 15V, 75A
Current - Collector Cutoff (Max):	100 µA
Input Capacitance (Cies) @ Vce:	4.7 nF @ 25 V
Input:	Standard
NTC Thermistor:	Yes
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Package / Case:	Module
Supplier Device Package:	ACEPACK™ 2

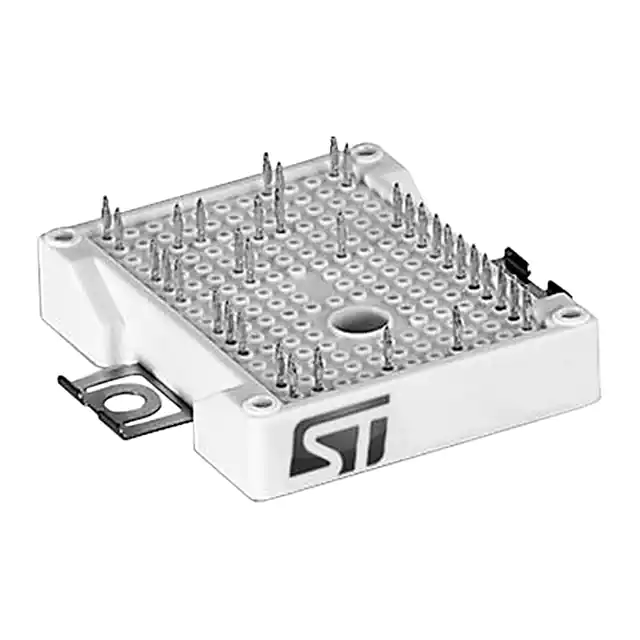

STMicroelectronics A2P75S12M3
