Please send RFQ , we will respond immediately.

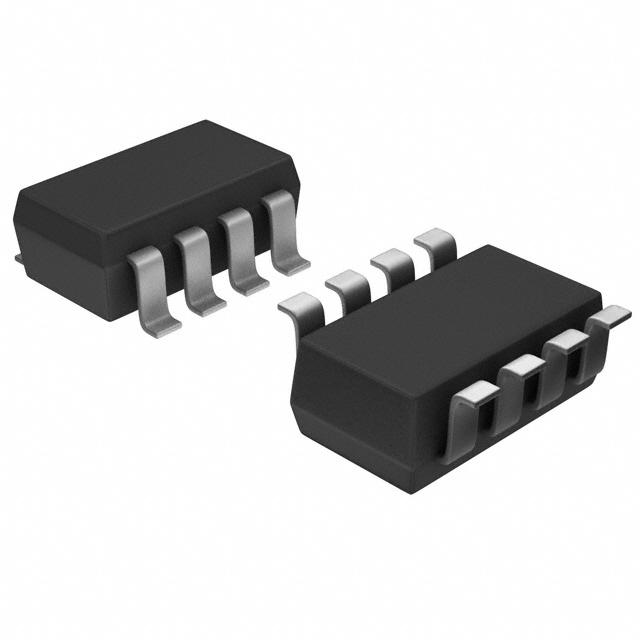

| Part Number | 74V2G02STR | 74V2G04STR | 74V2G05STR | 74V2G08STR | 74V2G32STR | 74V2T02STR | 74V1G02STR | 74V2G00STR |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | NOR Gate | Inverter | Inverter | AND Gate | OR Gate | NOR Gate | NOR Gate | NAND Gate |
| Number of Circuits | 2 | 3 | 3 | 2 | 2 | 2 | 1 | 2 |
| Number of Inputs | 2 | 3 | 3 | 2 | 2 | 2 | 2 | 2 |
| Features | - | - | Open Drain | - | - | - | - | - |
| Voltage - Supply | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 4.5V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 2 µA |
| Current - Output High, Low | 8mA, 8mA | 8mA, 8mA | -, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA |
| Logic Level - Low | 0.5V | 0.5V | 0.5V | 0.5V | 0.5V | 0.8V | 0.5V | 0.5V |
| Logic Level - High | 1.5V | 1.5V | 1.5V | 1.5V | 1.5V | 2V | 1.5V | 1.5V |
| Max Propagation Delay @ V, Max CL | 7ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7ns @ 5V, 50pF | 6.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7ns @ 5V, 50pF | 7.5ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-23-8 | SOT-23-8 | SOT-23-8 | SOT-23-8 | SOT-23-8 | SOT-23-8 | SOT-23-5 | SOT-23-8 |
| Package / Case | SOT-23-8 | SOT-23-8 | SOT-23-8 | SOT-23-8 | SOT-23-8 | SOT-23-8 | SC-74A, SOT-753 | SOT-23-8 |
