Please send RFQ , we will respond immediately.

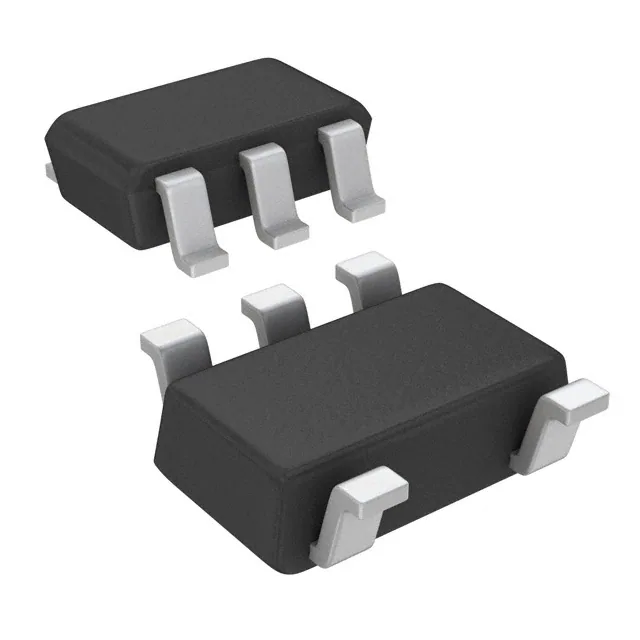

| Part Number | 74V1G04STR | 74V1G05STR | 74V1G08STR | 74V1G14STR | 74V1GU04STR | 74V1T04STR | 74V2G04STR | 74V1G00STR | 74V1G02STR | 74V1G03STR | 74V1G04CTR |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Logic Type | Inverter | Inverter | AND Gate | Inverter | Inverter | Inverter | Inverter | NAND Gate | NOR Gate | NAND Gate | Inverter |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 3 | 1 | 1 | 1 | 1 |
| Number of Inputs | 1 | 1 | 2 | 1 | 1 | 1 | 3 | 2 | 2 | 2 | 1 |
| Features | - | Open Drain | - | Schmitt Trigger | - | - | - | - | - | Open Drain | - |
| Voltage - Supply | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 4.5V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V | 2V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA | 1 µA |
| Current - Output High, Low | 8mA, 8mA | -, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | 8mA, 8mA | -, 8mA | 8mA, 8mA |
| Logic Level - Low | 0.5V | 0.5V | 0.5V | 0.9V ~ 1.65V | 0.3V | 0.8V | 0.5V | 0.5V | 0.5V | 0.5V | 0.5V |
| Logic Level - High | 1.5V | 1.5V | 1.5V | 2.2V ~ 3.85V | 1.7V | 2V | 1.5V | 1.5V | 1.5V | 1.5V | 1.5V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7ns @ 5V, 50pF | 8ns @ 5V, 50pF | 6ns @ 5V, 50pF | 7.7ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF | 7ns @ 5V, 50pF | 6.5ns @ 5V, 50pF | 7.5ns @ 5V, 50pF |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-23-8 | SOT-23-5 | SOT-23-5 | SOT-23-5 | SOT-323-5 |
| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SOT-23-8 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | 5-TSSOP, SC-70-5, SOT-353 |
