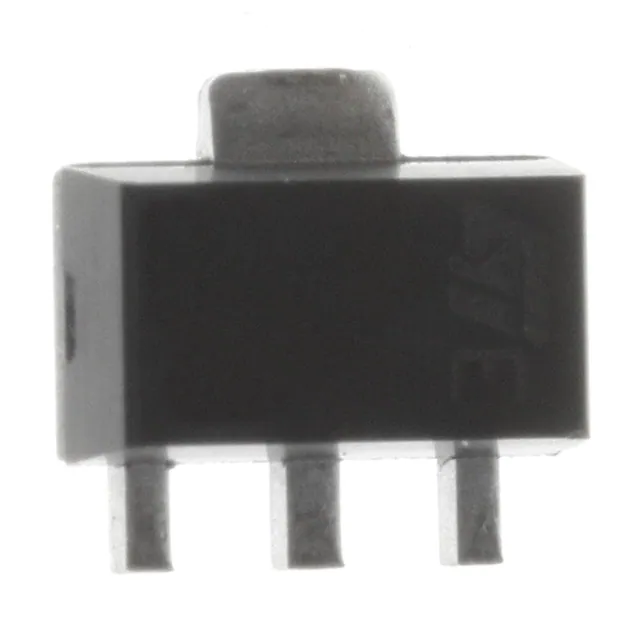

| Part Number | 2STF2220 | 2STF2280 | 2STX2220 |
|---|---|---|---|
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 1.5 A | 2 A | 1.5 A |
| Voltage - Collector Emitter Breakdown (Max) | 20 V | 80 V | 20 V |
| Vce Saturation (Max) @ Ib, Ic | 450mV @ 150mA, 1.5A | 250mV @ 100mA, 1A | 450mV @ 150mA, 1.5A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 1mA | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 100mA, 2V | 140 @ 100mA, 2V | 200 @ 100mA, 2V |
| Power - Max | 1.4 W | 1.4 W | 900 mW |
| Frequency - Transition | - | 50MHz | - |
| Operating Temperature | 150°C (TJ) | -65°C ~ 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Through Hole |
| Package / Case | TO-243AA | TO-243AA | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | SOT-89-3 | SOT-89 | TO-92-3 |
