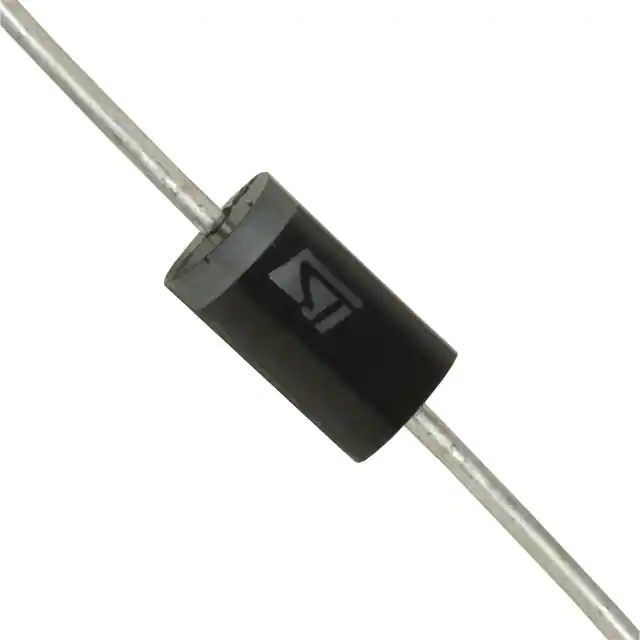

| Part Number | 1.5KE68ARL | 1.5KE68ARL4 | 1.5KE62ARL |
|---|---|---|---|
| Manufacturer | STMicroelectronics | onsemi | STMicroelectronics |
| Product Status | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 58.1V | 58.1V | 53V |
| Voltage - Breakdown (Min) | 64.6V | 64.6V | 58.9V |
| Voltage - Clamping (Max) @ Ipp | 121V | 92V | 111V |
| Current - Peak Pulse (10/1000µs) | 83A (8/20µs) | 16.3A | 90A (8/20µs) |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 1550pF @ 1MHz | - | 1700pF @ 1MHz |
| Operating Temperature | - | -65°C ~ 175°C (TJ) | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial | DO-201AD, Axial | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 | Axial | DO-201 |
