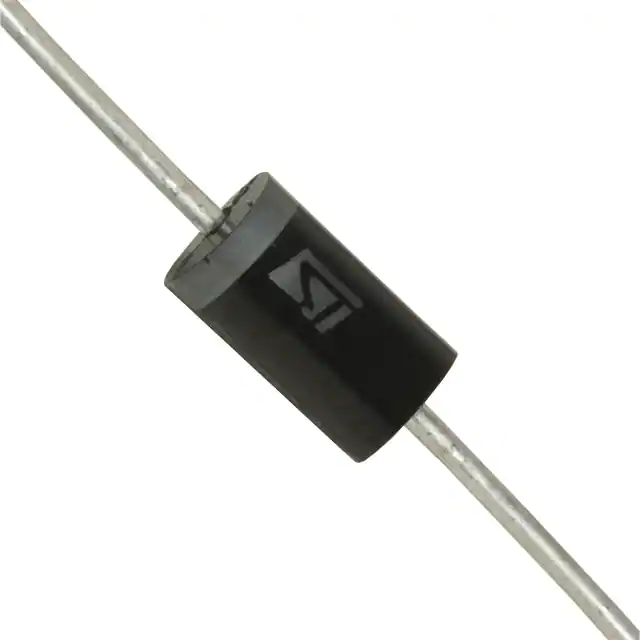

| Part Number | 1.5KE47A | 1.5KE47AG | 1.5KE47CA | 1.5KE47AH | 1.5KE47C | 1.5KE43A | 1.5KE47 |
|---|---|---|---|---|---|---|---|
| Manufacturer | STMicroelectronics | onsemi | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Diotec Semiconductor | Littelfuse Inc. | Diotec Semiconductor |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | - | 1 | - | 1 | 1 |
| Bidirectional Channels | - | - | 1 | - | 1 | - | - |
| Voltage - Reverse Standoff (Typ) | 40.2V | 40.2V | 40.2V | 40.2V | 38.1V | 36.8V | 38.1V |
| Voltage - Breakdown (Min) | 44.7V | 44.7V | 44.7V | 44.7V | 42.3V | 40.9V | 42.3V |
| Voltage - Clamping (Max) @ Ipp | 84V | 64.8V | 64.8V | 64.8V | 67.8V | 59.3V | 67.8V |
| Current - Peak Pulse (10/1000µs) | 119A (8/20µs) | 23.2A | 24A | 24A | 23A | 25.6A | 23A |
| Power - Peak Pulse | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) | 1500W (1.5kW) |
| Power Line Protection | No | No | No | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | Automotive | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 2050pF @ 1MHz | - | - | - | - | - | - |
| Operating Temperature | - | -65°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -50°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -50°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial | DO-201AD, Axial | DO-201AA, DO-27, Axial | DO-201AA, DO-27, Axial | Axial | DO-201AA, DO-27, Axial | Axial |
| Supplier Device Package | DO-201 | Axial | DO-201 | DO-201 | Axial | DO-201 | Axial |
