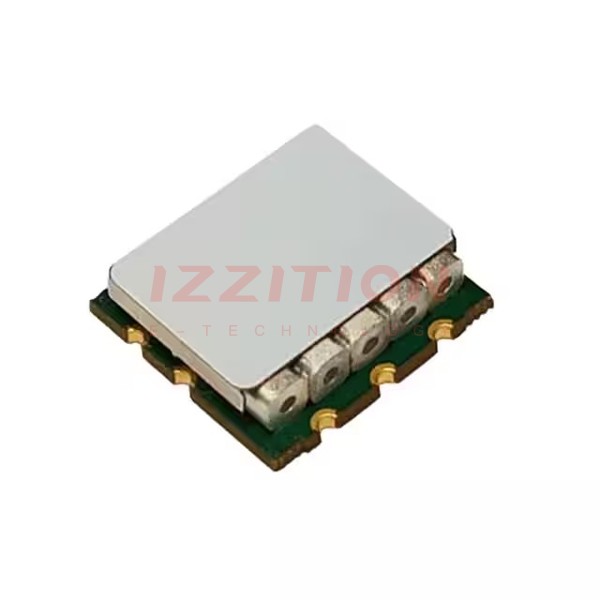

| Part Number | TT49764E-TR | TT49765E-TR | TT49766E-TR | TT49767E-TR |
|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Active | Active | Active | Active |
| Frequency | 4.7GHz Center | 1.03GHz Center | 1.09GHz Center | 1.4GHz Center |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Bandwidth | 600 MHz | 30 MHz | 30 MHz | 166 MHz |
| Insertion Loss | 2.1dB | 2.8dB | 3.2dB | 1.3dB |
| Filter Type | Band Pass | Band Pass | Band Pass | Band Pass |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-SMD Module | 11-SMD Module | 11-SMD Module | 11-SMD Module |
| Size / Dimension | 0.456" L x 0.434" W (11.58mm x 11.02mm) | 0.688" L x 0.512" W (17.48mm x 13.01mm) | 0.688" L x 0.512" W (17.48mm x 13.01mm) | 0.830" L x 0.830" W (21.08mm x 21.08mm) |
| Height (Max) | 0.128" (3.25mm) | 0.206" (5.23mm) | 0.206" (5.23mm) | 0.206" (5.23mm) |
