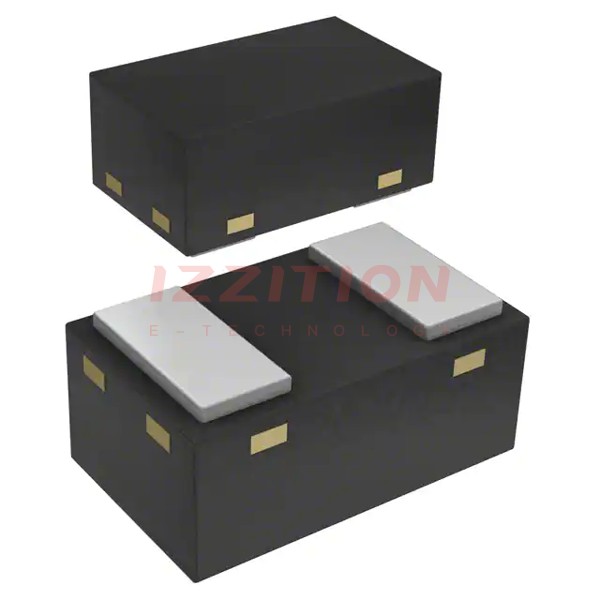

| Part Number | SMV1253-040LF | SMV1263-040LF | SMV1213-040LF | SMV1233-040LF | SMV1251-040LF |
|---|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Capacitance @ Vr, F | 4.8pF @ 4.7V, 50MHz | 2.9pF @ 2.5V, 1MHz | 5.5pF @ 4V, 1MHz | 1.1pF @ 6V, 50MHz | 3.8pF @ 4.7V, 50MHz |
| Capacitance Ratio | 12.3 | 2.5 | 5 | 3.3 | 12.2 |
| Capacitance Ratio Condition | C0.3/C4.7 | C0.5/C2.5 | C1/C4 | C1/C6 | C0.3/C4.7 |
| Voltage - Peak Reverse (Max) | 15 V | 20 V | 12 V | 15 V | 15 V |
| Diode Type | Single | Single | Single | Single | Single |
| Q @ Vr, F | 350 @ 3V, 50MHz | - | - | - | 400 @ 3V, 50MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | - | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | SOD-882 | 0402 (1005 Metric) | SOD-882 | SOD-882 |
| Supplier Device Package | 0402 | SOD-882 | 0402 | SOD-882 | SOD-882 |
