| Part Number | SMV1235-011LF | SMV1236-011LF | SMV1255-011LF | SMV1265-011LF | SMV1232-011LF | SMV1233-011LF | SMV1234-011LF | SMV1235-001LF |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Obsolete | Active | Active | Obsolete | Active | Obsolete | Active | Obsolete |
| Capacitance @ Vr, F | 3.6pF @ 6V, 50MHz | 5.3pF @ 6V, 50MHz | 5.8pF @ 4.7V, 50MHz | 0.83pF @ 26V, 1MHz | 0.94pF @ 6V, 500MHz | 1.1pF @ 6V, 50MHz | 2pF @ 6V, 50MHz | 3.6pF @ 6V, 50MHz |
| Capacitance Ratio | 3.4 | 3.5 | 12.3 | 19.5 | 3.3 | 3.3 | 3.4 | 3.4 |
| Capacitance Ratio Condition | C1/C6 | C1/C6 | C0.3/C4.7 | C1/C26 | C1/C6 | C1/C6 | C1/C6 | C1/C6 |
| Voltage - Peak Reverse (Max) | 15 V | 15 V | 15 V | 28 V | 15 V | 15 V | 15 V | 15 V |
| Diode Type | Single | Single | Single | Single | Single | Single | Single | Single |
| Q @ Vr, F | - | - | 350 @ 3V, 50MHz | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

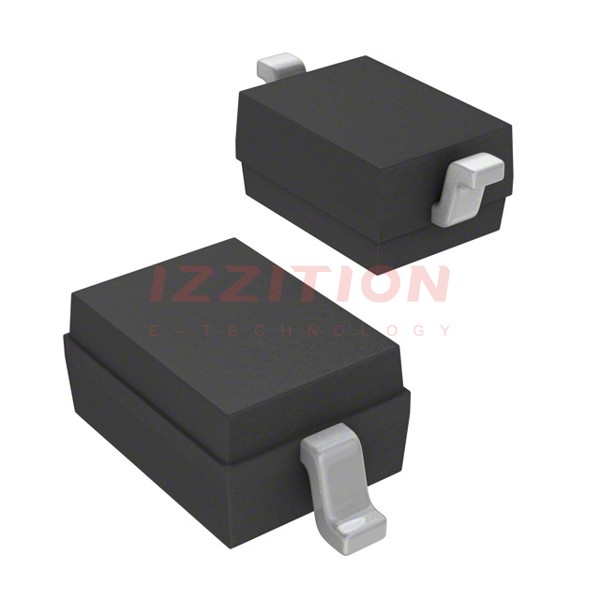

| Package / Case | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOT-23-3 |
