| Part Number | SMV1233-011LF | SMV1236-011LF | SMV1234-011LF | SMV1235-011LF | SMV1283-011LF | SMV1232-011LF |
|---|---|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Obsolete | Active | Active | Obsolete | Obsolete | Active |
| Capacitance @ Vr, F | 1.1pF @ 6V, 50MHz | 5.3pF @ 6V, 50MHz | 2pF @ 6V, 50MHz | 3.6pF @ 6V, 50MHz | 0.75pF @ 26V, 1MHz | 0.94pF @ 6V, 500MHz |
| Capacitance Ratio | 3.3 | 3.5 | 3.4 | 3.4 | 14.7 | 3.3 |
| Capacitance Ratio Condition | C1/C6 | C1/C6 | C1/C6 | C1/C6 | C1/C26 | C1/C6 |
| Voltage - Peak Reverse (Max) | 15 V | 15 V | 15 V | 15 V | 28 V | 15 V |
| Diode Type | Single | Single | Single | Single | Single | Single |
| Q @ Vr, F | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

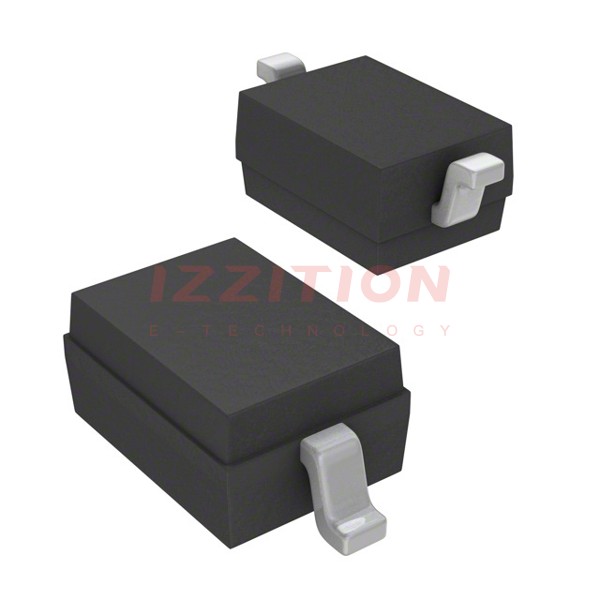

| Package / Case | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOD-323 | SOD-323 |
