Please send RFQ , we will respond immediately.

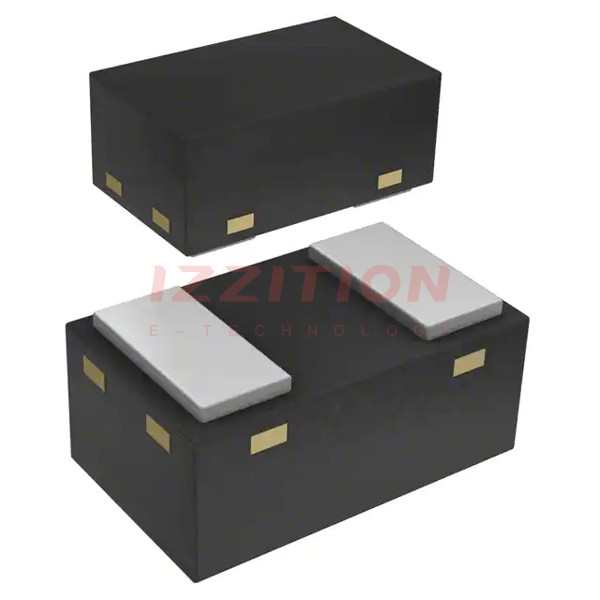

| Part Number | SMV1232-040LF | SMV1233-040LF | SMV1236-040LF | SMV1234-040LF | SMV1235-040LF | SMV1231-040LF |
|---|---|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Active | Active | Active | Active | Obsolete | Active |
| Capacitance @ Vr, F | 1.5pF @ 3V, 1MHz | 1.1pF @ 6V, 50MHz | 5.3pF @ 6V, 50MHz | 2pF @ 6V, 1MHz | 3.6pF @ 6V, 50MHz | 0.61pF @ 6V, 50MHz |
| Capacitance Ratio | 3.3 | 3.3 | 3.5 | 3.4 | 3.4 | 2.8 |
| Capacitance Ratio Condition | C1/C6 | C1/C6 | C1/C6 | C1/C6 | C1/C6 | C1/C6 |
| Voltage - Peak Reverse (Max) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| Diode Type | Single | Single | Single | Single | Single | Single |
| Q @ Vr, F | - | - | - | - | - | - |
| Operating Temperature | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0402 (1005 Metric) | SOD-882 | SOD-882 | 0402 (1005 Metric) | SOD-882 | SOD-882 |
| Supplier Device Package | 0402 | SOD-882 | SOD-882 | 0402 | SOD-882 | SOD-882 |
