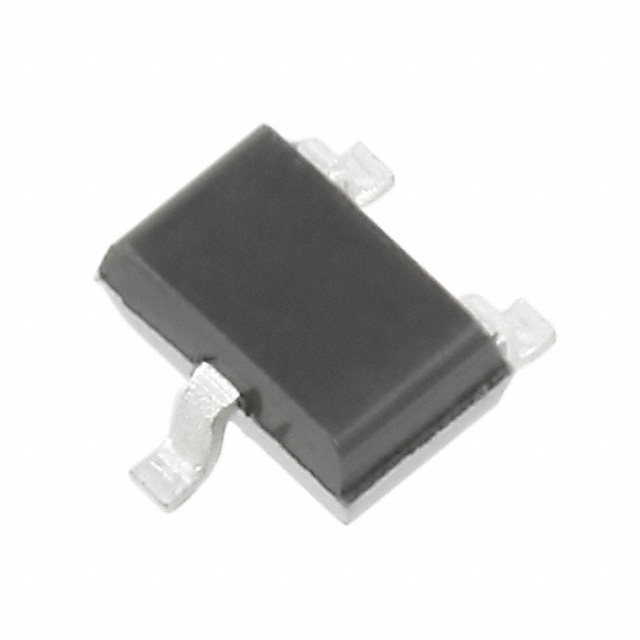

| Part Number | SMP1320-077LF | SMP1320-079LF | SMP1320-007LF | SMP1320-017LF | SMP1320-075LF |
|---|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active |
| Diode Type | PIN - Single | PIN - Single | PIN - Single | PIN - Single | PIN - 1 Pair Series Connection |
| Voltage - Peak Reverse (Max) | 50V | 50V | 50V | 50V | 50V |
| Current - Max | - | - | - | - | - |
| Capacitance @ Vr, F | 0.3pF @ 30V, 1MHz | 0.3pF @ 30V, 1MHz | 0.3pF @ 30V, 1MHz | 0.3pF @ 30V, 1MHz | 0.3pF @ 30V, 1MHz |
| Resistance @ If, F | 900mOhm @ 10mA, 100MHz | 900mOhm @ 10mA, 100MHz | 900mOhm @ 10mA, 100MHz | 900mOhm @ 10mA, 100MHz | 900mOhm @ 10mA, 100MHz |
| Power Dissipation (Max) | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW |
| Operating Temperature | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) |
| Package / Case | SC-70, SOT-323 | SC-79, SOD-523 | TO-236-3, SC-59, SOT-23-3 | TO-253-4, TO-253AA | SC-70, SOT-323 |
| Supplier Device Package | SC-70-3 | SC-79 | SOT-23-3 | SOT-143 | SC-70-3 |
