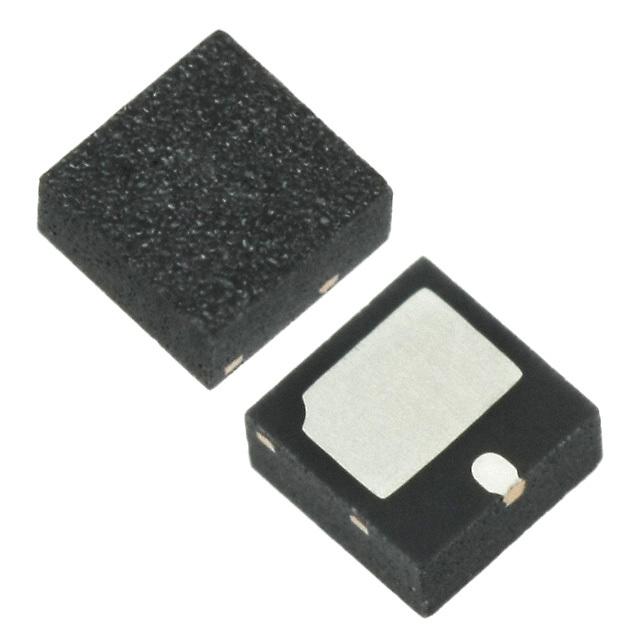

| Part Number | SMP1304-087LF | SMP1324-087LF | SMP1302-087LF | SMP1304-007LF | SMP1304-027LF | SMP1304-085LF |
|---|---|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Obsolete | Active | Active | Obsolete | Active | Active |
| Diode Type | PIN - Single | PIN - Single | PIN - Single | PIN - Single | PIN - 2 Pair CA + CC | PIN - Single |
| Voltage - Peak Reverse (Max) | 200V | - | 200V | 200V | 200V | 200V |
| Current - Max | 200 mA | 200 mA | 200 mA | - | - | 1.5 A |
| Capacitance @ Vr, F | 0.3pF @ 30V, 1MHz | 1.5pF @ 30V, 1MHz | 0.35pF @ 30V, 1MHz | 0.3pF @ 30V, 1MHz | 0.3pF @ 30V, 1MHz | 0.3pF @ 30V, 1MHz |
| Resistance @ If, F | 2Ohm @ 100mA, 100MHz | 750mOhm @ 50mA, 100MHz | 1.5Ohm @ 100mA, 100MHz | 2Ohm @ 100mA, 100MHz | 2Ohm @ 100mA, 100MHz | 2Ohm @ 100mA, 100MHz |
| Power Dissipation (Max) | 1 W | 2 W | 1 W | 250 mW | 250 mW | 2.5 W |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -40°C ~ 150°C (TA) |
| Package / Case | 2-VSFN Exposed Pad | 2-VSFN Exposed Pad | 2-VSFN Exposed Pad | TO-236-3, SC-59, SOT-23-3 | SOT-5 | 2-VDFN Exposed Pad |
| Supplier Device Package | 2-QFN (2x2) | 2-QFN (2x2) | 2-QFN (2x2) | SOT-23-3 | SOT-5 | 3-QFN (2x2) |
