Please send RFQ , we will respond immediately.

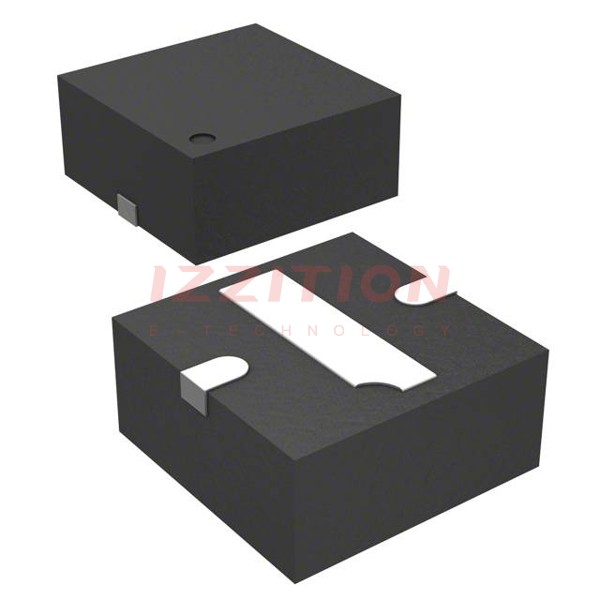

| Part Number | SMP1302-085LF | SMP1304-085LF | SMP1302-087LF | SMP1302-075LF |
|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Active | Active | Active | Obsolete |
| Diode Type | PIN - Single | PIN - Single | PIN - Single | PIN - 1 Pair Series Connection |
| Voltage - Peak Reverse (Max) | 200V | 200V | 200V | 200V |
| Current - Max | 1.5 A | 1.5 A | 200 mA | - |
| Capacitance @ Vr, F | 0.35pF @ 30V, 1MHz | 0.3pF @ 30V, 1MHz | 0.35pF @ 30V, 1MHz | 0.3pF @ 30V, 1MHz |
| Resistance @ If, F | 1.5Ohm @ 100mA, 100MHz | 2Ohm @ 100mA, 100MHz | 1.5Ohm @ 100mA, 100MHz | 1.5Ohm @ 100mA, 100MHz |
| Power Dissipation (Max) | 3 W | 2.5 W | 1 W | 250 mW |
| Operating Temperature | -40°C ~ 150°C (TA) | -40°C ~ 150°C (TA) | -55°C ~ 175°C (TJ) | -65°C ~ 150°C (TA) |
| Package / Case | 2-VDFN Exposed Pad | 2-VDFN Exposed Pad | 2-VSFN Exposed Pad | SC-70, SOT-323 |
| Supplier Device Package | 3-QFN (2x2) | 3-QFN (2x2) | 2-QFN (2x2) | SC-70-3 |
