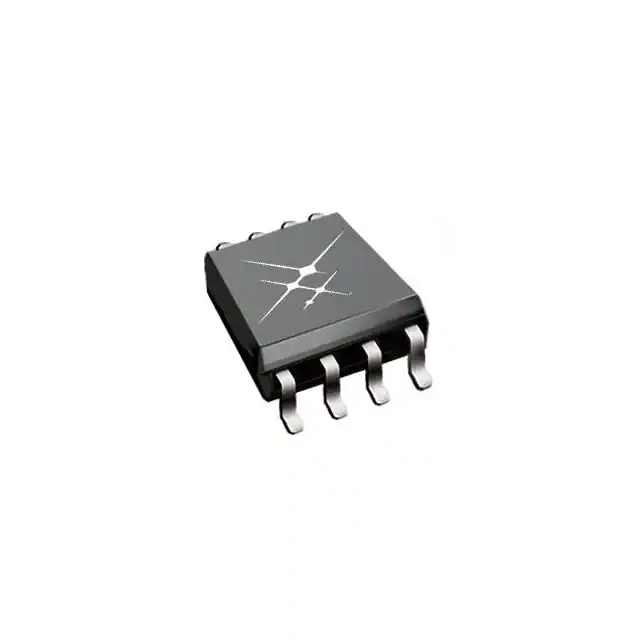

| Part Number | SL23EP04SC-1T | SL23EP04SC-2T | SL23EP04SI-1T | SL23EP05SC-1T | SL23EP08SC-1T | SL23EP09SC-1T | SL23EP04SC-1 | SL23EP04SC-1H | SL23EP04SC-1HT |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active |
| Type | - | - | - | - | - | - | - | - | - |
| PLL | Yes | Yes | Yes | Yes | Yes with Bypass | Yes with Bypass | Yes | Yes | Yes |
| Input | Clock | Clock | Clock | Clock | Clock | Clock | Clock | Clock | Clock |
| Output | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS | LVCMOS |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:4 | 1:4 | 1:4 | 1:5 | 1:9 | 1:9 | 1:4 | 1:4 | 1:4 |
| Differential - Input:Output | No/No | No/No | No/No | No/No | No/No | No/No | No/No | No/No | No/No |
| Frequency - Max | 220MHz | 220MHz | 220MHz | 220MHz | 220MHz | 220MHz | 220MHz | 220MHz | 220MHz |
| Divider/Multiplier | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | No/No | Yes/Yes | Yes/Yes | Yes/Yes |
| Voltage - Supply | 2.97V ~ 3.63V | 2.97V ~ 3.63V | 2.97V ~ 3.63V | 2.3V ~ 3.6V | 2.3V ~ 3.6V | 2.3V ~ 3.6V | 2.97V ~ 3.63V | 2.97V ~ 3.63V | 2.97V ~ 3.63V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | -40°C ~ 85°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 16-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-SOIC | 8-SOIC | 16-SOIC | 16-SOIC | 8-SOIC | 8-SOIC | 8-SOIC |
