| Part Number | SKYA21003 | SKYA21013 | SKYA21001 | SKYA21002 |
|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Active | Active | Active | Active |
| RF Type | General Purpose | 802.11b/g/n | Bluetooth, WLAN | 802.11b/g/n, Bluetooth, WLAN |
| Topology | Reflective | Reflective | Reflective | - |
| Circuit | SPDT | SPDT | SPDT | SP3T |
| Frequency Range | 100MHz ~ 6GHz | 100MHz ~ 6GHz | 20MHz ~ 3GHz | 100MHz ~ 3GHz |
| Isolation | 42dB | 28dB | 23dB | 25dB |
| Insertion Loss | 0.35dB | 0.5dB | 0.4dB | 0.5dB |
| Test Frequency | 6GHz | 3GHz | 3GHz | 2.5GHz |
| P1dB | 38.5dBm | - | 34dBm | 29dBm |
| IIP3 | 70dBm | 68dBm | 53dBm | 45dBm |
| Features | - | - | - | - |
| Impedance | - | 50Ohm | 50Ohm | 50Ohm |
| Voltage - Supply | - | 2.5V ~ 4.8V | 3V | 8V |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 85°C | -40°C ~ 105°C | -40°C ~ 85°C |

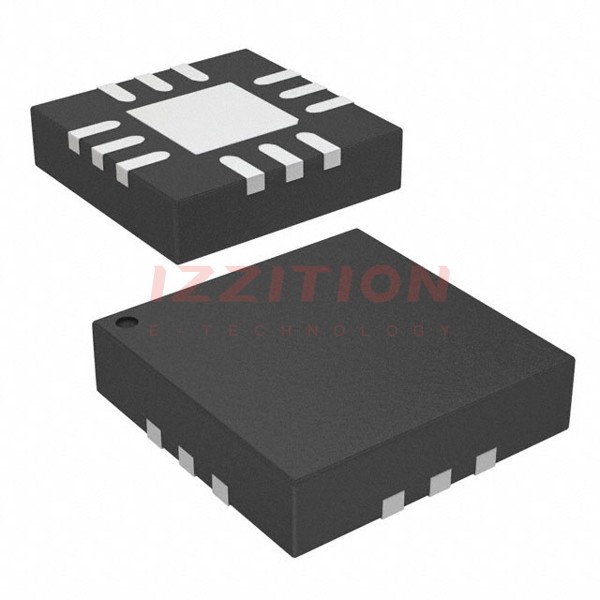

| Package / Case | 12-UFQFN Exposed Pad | 12-UFQFN Exposed Pad | 6-TSSOP, SC-88, SOT-363 | 8-UFDFN Exposed Pad |
| Supplier Device Package | 12-QFN (2x2) | 12-QFN (2x2) | SC-70-6 | 8-DFN (2x2) |
