| Part Number | SKY13415-485LF | SKY13416-485LF | SKY13417-485LF | SKY13418-485LF | SKY13414-485LF |
|---|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Active | Active | Active | Active | Active |
| RF Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Topology | Reflective | Reflective | Reflective | Reflective | Reflective |
| Circuit | SP5T | SP6T | SP7T | SP8T | SP4T |
| Frequency Range | 100MHz ~ 3GHz | 100MHz ~ 3GHz | 100MHz ~ 3GHz | 100MHz ~ 3GHz | 100MHz ~ 3GHz |
| Isolation | 34dB | 29dB | 24dB | 24dB | 42dB |
| Insertion Loss | 0.4dB | 0.45dB | 0.55dB | 0.6dB | 0.4dB |
| Test Frequency | 2GHz | 2GHz | 2GHz | 2GHz | 1GHz |
| P1dB | 37dBm | 37dBm | 37dBm | 37dBm | 37dBm |
| IIP3 | 70dBm | 70dBm | 66dBm | 66dBm | 70dBm |
| Features | - | - | - | - | - |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Voltage - Supply | 2.5V ~ 4.8V | 2.5V ~ 4.8V | 2.5V ~ 4.8V | 2.5V ~ 4.8V | 2.5V ~ 4.8V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 90°C | -40°C ~ 90°C | -40°C ~ 85°C |

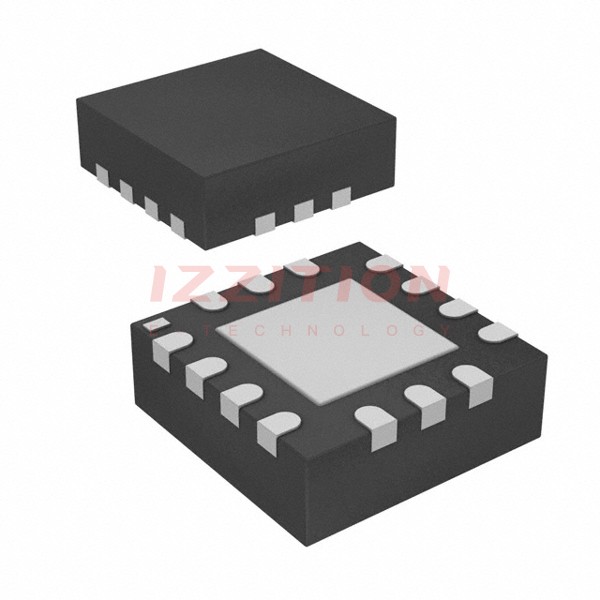

| Package / Case | 14-UFQFN Exposed Pad | 14-UFQFN Exposed Pad | 14-UFQFN Exposed Pad | 14-UFQFN Exposed Pad | 14-UFQFN Exposed Pad |
| Supplier Device Package | 14-QFN (2x2) | 14-QFN (2x2) | 14-QFN (2x2) | 14-QFN (2x2) | 14-QFN (2x2) |
