Please send RFQ , we will respond immediately.

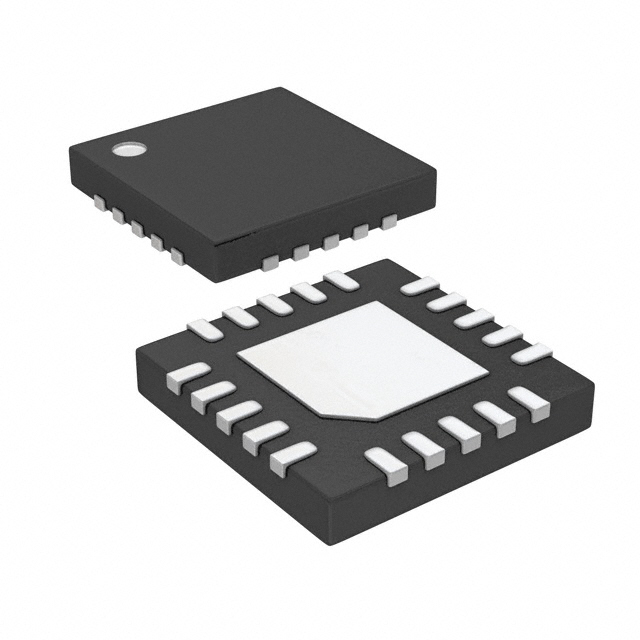

| Part Number | SKY12242-492LF | SKY12245-492LF | SKY12248-492LF | SKY12241-492LF |
|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Active | Active | Active | Obsolete |
| RF Type | LTE | 3G/4G/5G, LTE | LTE, TD-SCDMA, WiMax | General Purpose |
| Topology | - | Absorptive/Reflective | - | - |
| Circuit | SPDT | SPDT | SPST | SPDT |
| Frequency Range | 1.8GHz ~ 3GHz | 300MHz ~ 5GHz | 500MHz ~ 6GHz | 1.8GHz ~ 3GHz |
| Isolation | 12dB | 41dB | 20dB | 17dB |
| Insertion Loss | 0.8dB | 0.7dB (Max) | 1.3dB | 0.55dB |
| Test Frequency | 3GHz | 4.6GHz | 6GHz | 2.6GHz |
| P1dB | 38dBm | - | - | 38dBm |
| IIP3 | 68dBm | 69dBm | 72dBm | 63dBm |
| Features | - | - | - | - |
| Impedance | 50Ohm | - | 50Ohm | 50Ohm |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 28V | 4.5V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C (TC) | - | -55°C ~ 175°C | -40°C ~ 105°C |
| Package / Case | 20-LQFN Exposed Pad | 20-LQFN Exposed Pad | 16-LQFN Exposed Pad | 20-LQFN Exposed Pad |
| Supplier Device Package | 20-QFN (5x5) | 20-QFN (5x5) | 16-QFN (4x4) | 20-QFN (5x5) |
