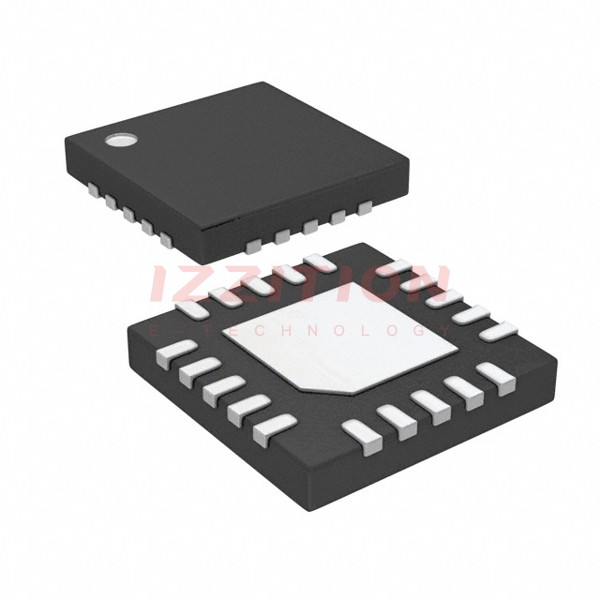

| Part Number | SKY12241-492LF | SKY12242-492LF | SKY12245-492LF | SKY12248-492LF |
|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Obsolete | Active | Active | Active |
| RF Type | General Purpose | LTE | 3G/4G/5G, LTE | LTE, TD-SCDMA, WiMax |
| Topology | - | - | Absorptive/Reflective | - |
| Circuit | SPDT | SPDT | SPDT | SPST |
| Frequency Range | 1.8GHz ~ 3GHz | 1.8GHz ~ 3GHz | 300MHz ~ 5GHz | 500MHz ~ 6GHz |
| Isolation | 17dB | 12dB | 41dB | 20dB |
| Insertion Loss | 0.55dB | 0.8dB | 0.7dB (Max) | 1.3dB |
| Test Frequency | 2.6GHz | 3GHz | 4.6GHz | 6GHz |
| P1dB | 38dBm | 38dBm | - | - |
| IIP3 | 63dBm | 68dBm | 69dBm | 72dBm |
| Features | - | - | - | - |
| Impedance | 50Ohm | 50Ohm | - | 50Ohm |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 28V |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C (TC) | - | -55°C ~ 175°C |
| Package / Case | 20-LQFN Exposed Pad | 20-LQFN Exposed Pad | 20-LQFN Exposed Pad | 16-LQFN Exposed Pad |
| Supplier Device Package | 20-QFN (5x5) | 20-QFN (5x5) | 20-QFN (5x5) | 16-QFN (4x4) |
