SI8504-B-IM
  • Share:

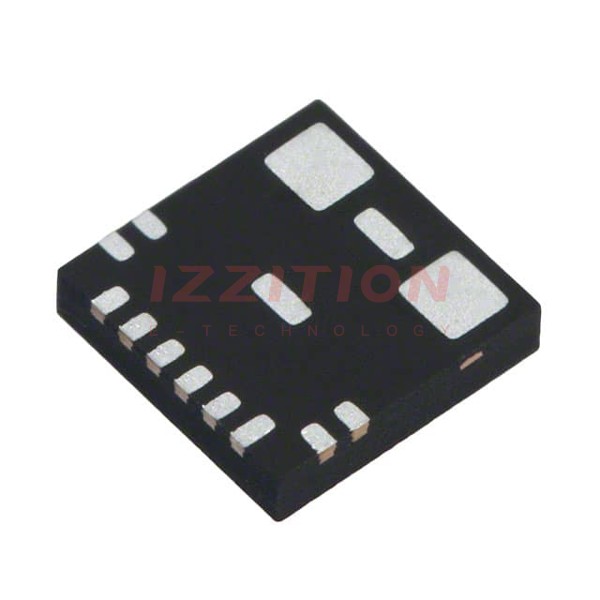

Skyworks Solutions Inc. SI8504-B-IM

Manufacturer No:
SI8504-B-IM
Manufacturer:
Skyworks Solutions Inc.
Package:
Tube
Datasheet:
SI8504-B-IM Datasheet
ECAD Model:
-
Description:
SENSOR CURRENT XFMR 5A AC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

For Measuring:AC
Sensor Type:Transformer w/Conditioning
Current - Sensing:5A
Number of Channels:1
Output:Ratiometric, Voltage
Sensitivity:392mV/A
Frequency:50kHz ~ 1MHz
Linearity:-
Accuracy:±5%
Voltage - Supply:2.7V ~ 5.5V
Response Time:-
Current - Supply (Max):7mA
Operating Temperature:-40°C ~ 125°C
Polarization:Unidirectional
Mounting Type:Surface Mount
Package / Case:12-VFQFN
Supplier Device Package:12-QFN (4x4)
0 Remaining View Similar

In Stock

-
352

Please send RFQ , we will respond immediately.
