SI8420AB-D-ISR
  • Share:

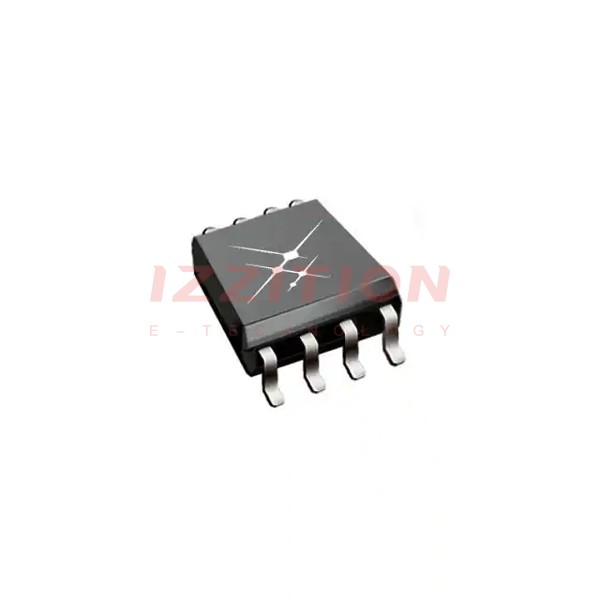

Skyworks Solutions Inc. SI8420AB-D-ISR

Manufacturer No:
SI8420AB-D-ISR
Manufacturer:
Skyworks Solutions Inc.
Package:
Tape & Reel (TR)
Datasheet:
SI8420AB-D-ISR Datasheet
ECAD Model:
-
Description:
DGTL ISO 2500VRMS 2CH GP 8SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Technology:Capacitive Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:2
Inputs - Side 1/Side 2:2/0
Channel Type:Unidirectional
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):25kV/µs (Typ)
Data Rate:1Mbps
Propagation Delay tpLH / tpHL (Max):35ns, 35ns
Pulse Width Distortion (Max):25ns
Rise / Fall Time (Typ):3.8ns, 2.8ns
Voltage - Supply:2.7V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SOIC
0 Remaining View Similar

In Stock

$1.27
532

Please send RFQ , we will respond immediately.
