SI8261BCD-C-ISR
  • Share:

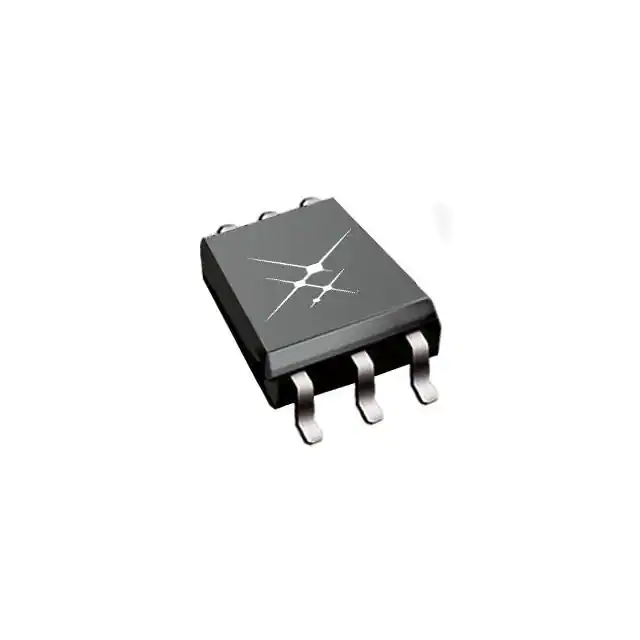

Skyworks Solutions Inc. SI8261BCD-C-ISR

Manufacturer No:
SI8261BCD-C-ISR
Manufacturer:
Skyworks Solutions Inc.
Package:
Tape & Reel (TR)
Datasheet:
SI8261BCD-C-ISR Datasheet
ECAD Model:
-
Description:
DGTL ISO 5KV 1CH GATE DRVR 6SDIP
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Technology:Capacitive Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):35kV/µs
Propagation Delay tpLH / tpHL (Max):60ns, 50ns
Pulse Width Distortion (Max):28ns
Rise / Fall Time (Typ):5.5ns, 8.5ns
Current - Output High, Low:500mA, 1.2A
Current - Peak Output:4A
Voltage - Forward (Vf) (Typ):2.8V (Max)
Current - DC Forward (If) (Max):30 mA
Voltage - Output Supply:13.5V ~ 30V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:6-SOIC (0.295", 7.50mm Width)
Supplier Device Package:6-SDIP Gull Wing
Approval Agency:CQC, CSA, UR, VDE
0 Remaining View Similar

In Stock

$4.42
35

Please send RFQ , we will respond immediately.
