SI823H9AD-IS4R
  • Share:

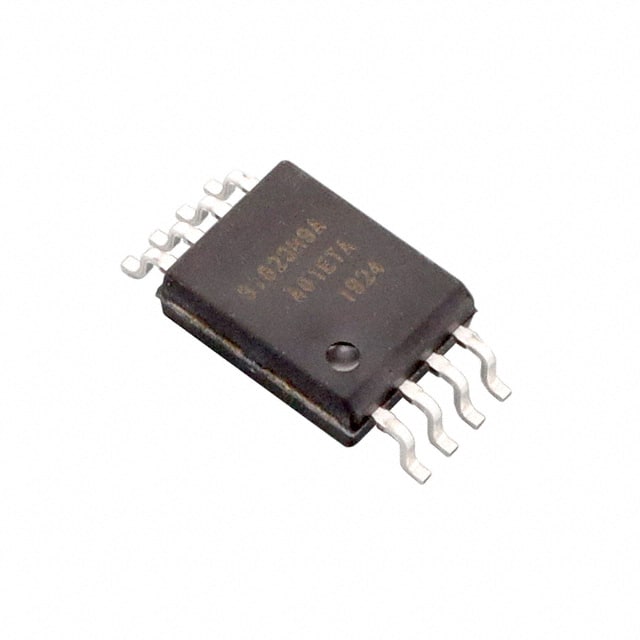

Skyworks Solutions Inc. SI823H9AD-IS4R

Manufacturer No:
SI823H9AD-IS4R
Manufacturer:
Skyworks Solutions Inc.
Package:
Tape & Reel (TR)
Datasheet:
SI823H9AD-IS4R Datasheet
ECAD Model:
-
Description:
5KV GATE DRIVER 8-SSO8
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Technology:Capacitive Coupling
Number of Channels:1
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):125kV/µs
Propagation Delay tpLH / tpHL (Max):30ns, 30ns
Pulse Width Distortion (Max):5ns
Rise / Fall Time (Typ):12ns, 12ns (Max)
Current - Output High, Low:4A, 4A
Current - Peak Output:6A
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:5.5V ~ 30V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.295", 7.50mm Width)
Supplier Device Package:8-SSO
Approval Agency:CQC, CSA, UL, VDE
0 Remaining View Similar

In Stock

$3.24
54

Please send RFQ , we will respond immediately.
