SI8235AB-D-IM1
  • Share:

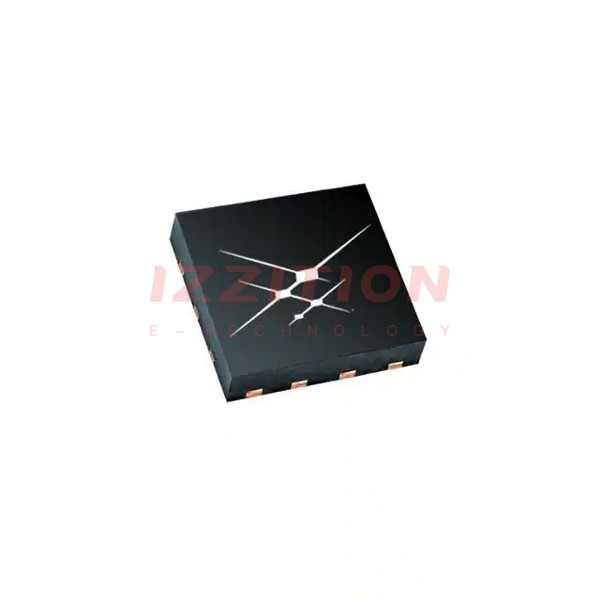

Skyworks Solutions Inc. SI8235AB-D-IM1

Manufacturer No:
SI8235AB-D-IM1
Manufacturer:
Skyworks Solutions Inc.
Package:
Tube
Datasheet:
SI8235AB-D-IM1 Datasheet
ECAD Model:
-
Description:
DUAL ISOLATED GATE DRIVER
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Technology:Capacitive Coupling
Number of Channels:2
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):45kV/µs
Propagation Delay tpLH / tpHL (Max):60ns, 60ns
Pulse Width Distortion (Max):5.6ns
Rise / Fall Time (Typ):12ns, 12ns
Current - Output High, Low:2A, 4A
Current - Peak Output:4A
Voltage - Forward (Vf) (Typ):-
Current - DC Forward (If) (Max):-
Voltage - Output Supply:6.5V ~ 24V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:14-VDFN
Supplier Device Package:14-QFN (5x5)
Approval Agency:CQC, CSA, UR, VDE
0 Remaining View Similar

In Stock

$5.69
76

Please send RFQ , we will respond immediately.
