SI8221DC-D-ISR
  • Share:

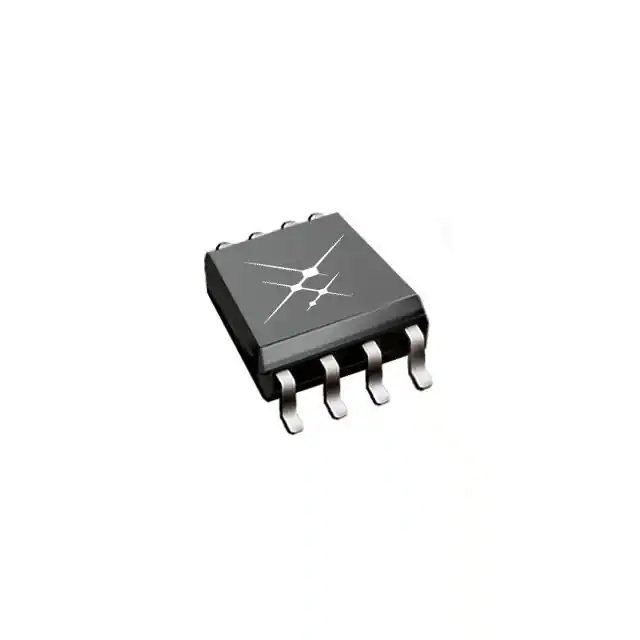

Skyworks Solutions Inc. SI8221DC-D-ISR

Manufacturer No:
SI8221DC-D-ISR
Manufacturer:
Skyworks Solutions Inc.
Package:
Tape & Reel (TR)
Datasheet:
SI8221DC-D-ISR Datasheet
ECAD Model:
-
Description:
DGTL ISO 3.75KV GATE DRVR 8SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Technology:Capacitive Coupling
Number of Channels:1
Voltage - Isolation:3750Vrms
Common Mode Transient Immunity (Min):30kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max):60ns, 40ns
Pulse Width Distortion (Max):-
Rise / Fall Time (Typ):30ns, 30ns (Max)
Current - Output High, Low:300mA, 500mA
Current - Peak Output:500mA
Voltage - Forward (Vf) (Typ):2.5V (Max)
Current - DC Forward (If) (Max):30 mA
Voltage - Output Supply:14.8V ~ 24V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SOIC
Approval Agency:CQC, CSA, UR, VDE
0 Remaining View Similar

In Stock

$2.14
268

Please send RFQ , we will respond immediately.
