SI8220BB-D-IS
  • Share:

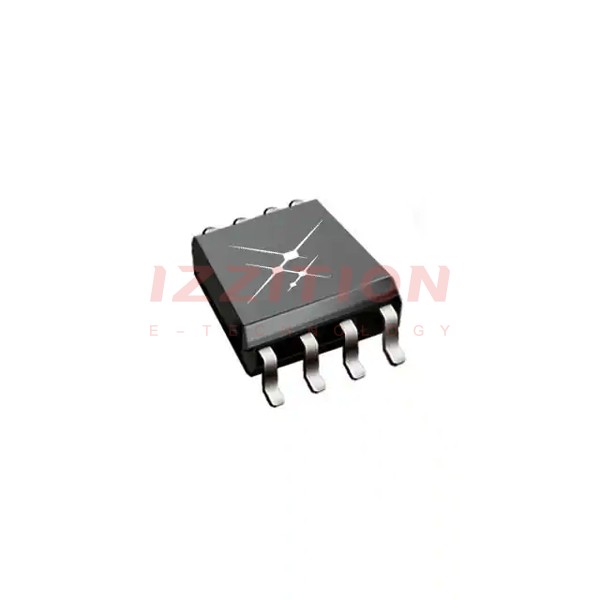

Skyworks Solutions Inc. SI8220BB-D-IS

Manufacturer No:
SI8220BB-D-IS
Manufacturer:
Skyworks Solutions Inc.
Package:
Tube
Datasheet:
SI8220BB-D-IS Datasheet
ECAD Model:
-
Description:
DGTL ISO 2.5KV GATE DRIVER 8SOIC
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Technology:Capacitive Coupling
Number of Channels:1
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):30kV/µs (Typ)
Propagation Delay tpLH / tpHL (Max):60ns, 40ns
Pulse Width Distortion (Max):-
Rise / Fall Time (Typ):20ns, 20ns (Max)
Current - Output High, Low:1.5A, 2.5A
Current - Peak Output:2.5A
Voltage - Forward (Vf) (Typ):2.5V (Max)
Current - DC Forward (If) (Max):30 mA
Voltage - Output Supply:9.4V ~ 24V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SOIC
Approval Agency:CQC, CSA, UR, VDE
0 Remaining View Similar

In Stock

$3.55
98

Please send RFQ , we will respond immediately.
