Please send RFQ , we will respond immediately.

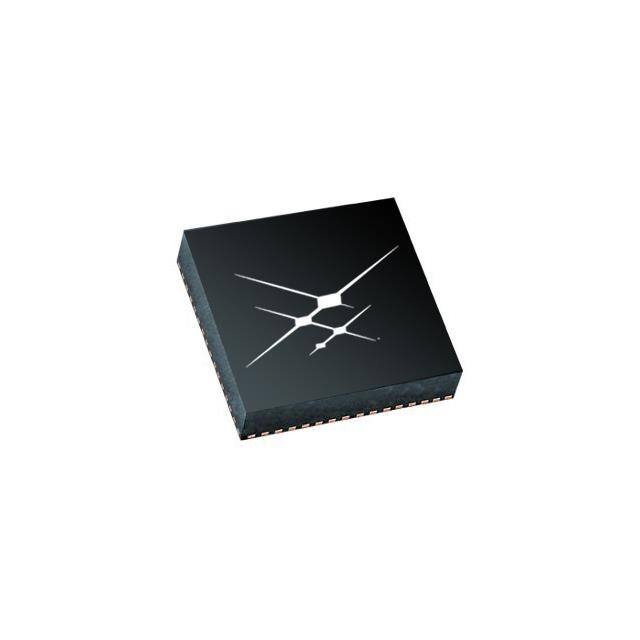

| Part Number | SI5396C-A-GMR | SI5396D-A-GMR | SI5396K-A-GMR | SI5396M-A-GMR | SI5396J-A-GMR | SI5396L-A-GMR | SI5397C-A-GMR | SI5396A-A-GMR | SI5396B-A-GMR | SI5396C-A-GM |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Type | Clock Multiplier, Jitter Attenuator | Clock Multiplier, Jitter Attenuator | Clock Multiplier, Jitter Attenuator | Clock Multiplier, Jitter Attenuator | Clock Multiplier, Jitter Attenuator | Clock Multiplier, Jitter Attenuator | - | - | - | Clock Multiplier, Jitter Attenuator |
| PLL | Yes | Yes | Yes | Yes | Yes | Yes | - | - | - | Yes |
| Input | LVCMOS, Crystal | LVCMOS, Crystal | LVCMOS, Crystal | LVCMOS, Crystal | LVCMOS, Crystal | LVCMOS, Crystal | - | - | - | LVCMOS, Crystal |
| Output | CML, HCSL, LVCMOS, LVDS, LVPECL | CML, HCSL, LVCMOS, LVDS, LVPECL | CML, HCSL, LVCMOS, LVDS, LVPECL | CML, HCSL, LVCMOS, LVDS, LVPECL | CML, HCSL, LVCMOS, LVDS, LVPECL | CML, HCSL, LVCMOS, LVDS, LVPECL | - | - | - | CML, HCSL, LVCMOS, LVDS, LVPECL |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 | - | - | - | 1 |
| Ratio - Input:Output | 4:12 | 4:12 | 4:4 | 4:12 | 4:4 | 4:12 | - | - | - | 4:12 |
| Differential - Input:Output | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | Yes/Yes | - | - | - | Yes/Yes |
| Frequency - Max | 720MHz | 350MHz | 350MHz | 350MHz | 720MHz | 720MHz | - | - | - | 720MHz |
| Divider/Multiplier | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | Yes/No | - | - | - | Yes/No |
| Voltage - Supply | 1.71V ~ 1.89V, 3.14V ~ 3.47V | 1.71V ~ 1.89V, 3.14V ~ 3.47V | 1.71V ~ 1.89V, 3.14V ~ 3.47V | 1.71V ~ 1.89V, 3.14V ~ 3.47V | 1.71V ~ 1.89V, 3.14V ~ 3.47V | 1.71V ~ 1.89V, 3.14V ~ 3.47V | - | - | - | 1.71V ~ 1.89V, 3.14V ~ 3.47V |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | - | - | - | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - | - | - | Surface Mount |
| Package / Case | 64-VFQFN Exposed Pad | 64-VFQFN Exposed Pad | 44-VFQFN Exposed Pad | 64-TFLGA | 44-VFQFN Exposed Pad | 64-TFLGA Exposed Pad | - | - | - | 64-VFQFN Exposed Pad |
| Supplier Device Package | 64-QFN (9x9) | 64-QFN (9x9) | 44-QFN (7x7) | 64-LGA (9x9) | 44-QFN (7x7) | 64-LGA (9x9) | - | - | - | 64-QFN (9x9) |
