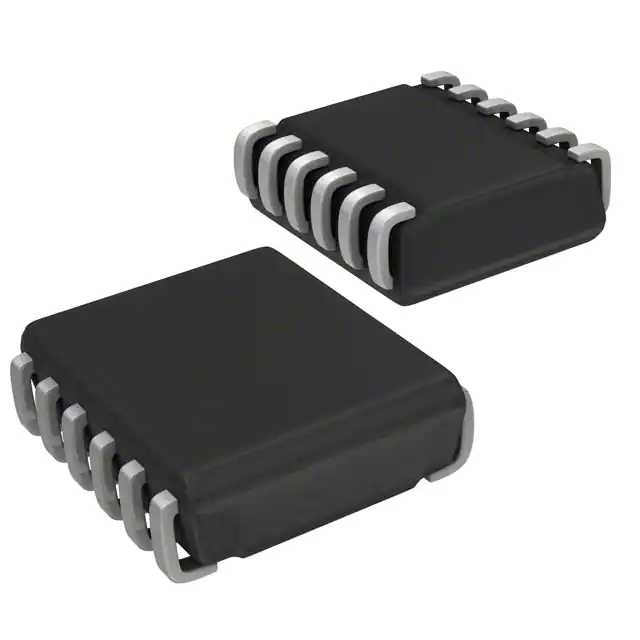

| Part Number | AAT3242ITP-TI-T1 | AAT3242ITP-TN-T1 | AAT3242ITP-TR-T1 | AAT3242ITP-WI-T1 | AAT3242ITP-TG-T1 |
|---|---|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 2 | 2 | 2 | 2 | 2 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 3V, 1.8V | 3V, 2.5V | 3V, 2.85V | 3.3V, 1.8V | 3V, 1.5V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.6V @ 300mA, 0.3V @ 150mA | 0.6V @ 300mA, 0.3V @ 150mA | 0.6V @ 300mA, 0.3V @ 150mA | 0.6V @ 300mA, 0.3V @ 150mA | 0.6V @ 300mA, 0.3V @ 150mA |
| Current - Output | 300mA, 150mA | 300mA, 150mA | 300mA, 150mA | 300mA, 150mA | 300mA, 150mA |
| Current - Quiescent (Iq) | - | - | - | - | - |
| Current - Supply (Max) | - | - | - | - | - |
| PSRR | 65dB ~ 42dB (1kHz ~ 1MHz) | 65dB ~ 42dB (1kHz ~ 1MHz) | 65dB ~ 42dB (1kHz ~ 1MHz) | 65dB ~ 42dB (1kHz ~ 1MHz) | 65dB ~ 42dB (1kHz ~ 1MHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 12-TFSOJ (0.094", 2.40mm Width) | 12-TFSOJ (0.094", 2.40mm Width) | 12-TFSOJ (0.094", 2.40mm Width) | 12-TFSOJ (0.094", 2.40mm Width) | 12-TFSOJ (0.094", 2.40mm Width) |
| Supplier Device Package | 12-TSOPJW | 12-TSOPJW | 12-TSOPJW | 12-TSOPJW | 12-TSOPJW |
