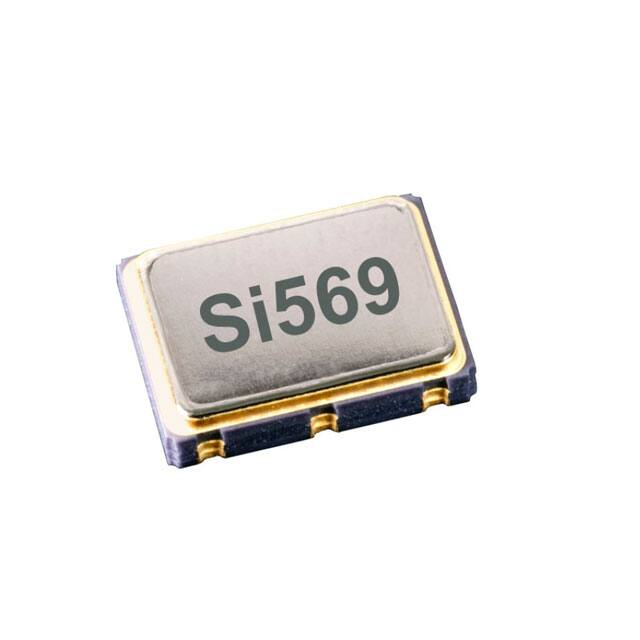

| Part Number | 569AAAA002024ABG | 569AAAA002024ABGR | 569AAAA002024ACG |
|---|---|---|---|
| Manufacturer | Skyworks Solutions Inc. | Skyworks Solutions Inc. | Skyworks Solutions Inc. |
| Product Status | Not For New Designs | Not For New Designs | Active |
| Base Resonator | Crystal | Crystal | Crystal |
| Type | VCXO | VCXO | VCXO |
| Frequency | 1 MHz | 1 MHz | 1 MHz |
| Function | Enable/Disable | Enable/Disable | Enable/Disable |
| Output | LVPECL | LVPECL | LVPECL |
| Voltage - Supply | 2.5V, 3.3V | 2.5V, 3.3V | 2.5V ~ 3.3V |
| Frequency Stability | ±20ppm | ±20ppm | ±20ppm |
| Absolute Pull Range (APR) | - | ±20ppm | ±20ppm |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Spread Spectrum Bandwidth | - | - | - |
| Current - Supply (Max) | 170mA | 170mA | 170mA |
| Ratings | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 8-SMD, No Lead | 8-SMD, No Lead | 8-SMD, No Lead |
| Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| Height - Seated (Max) | 0.052" (1.33mm) | 0.052" (1.33mm) | 0.052" (1.33mm) |
